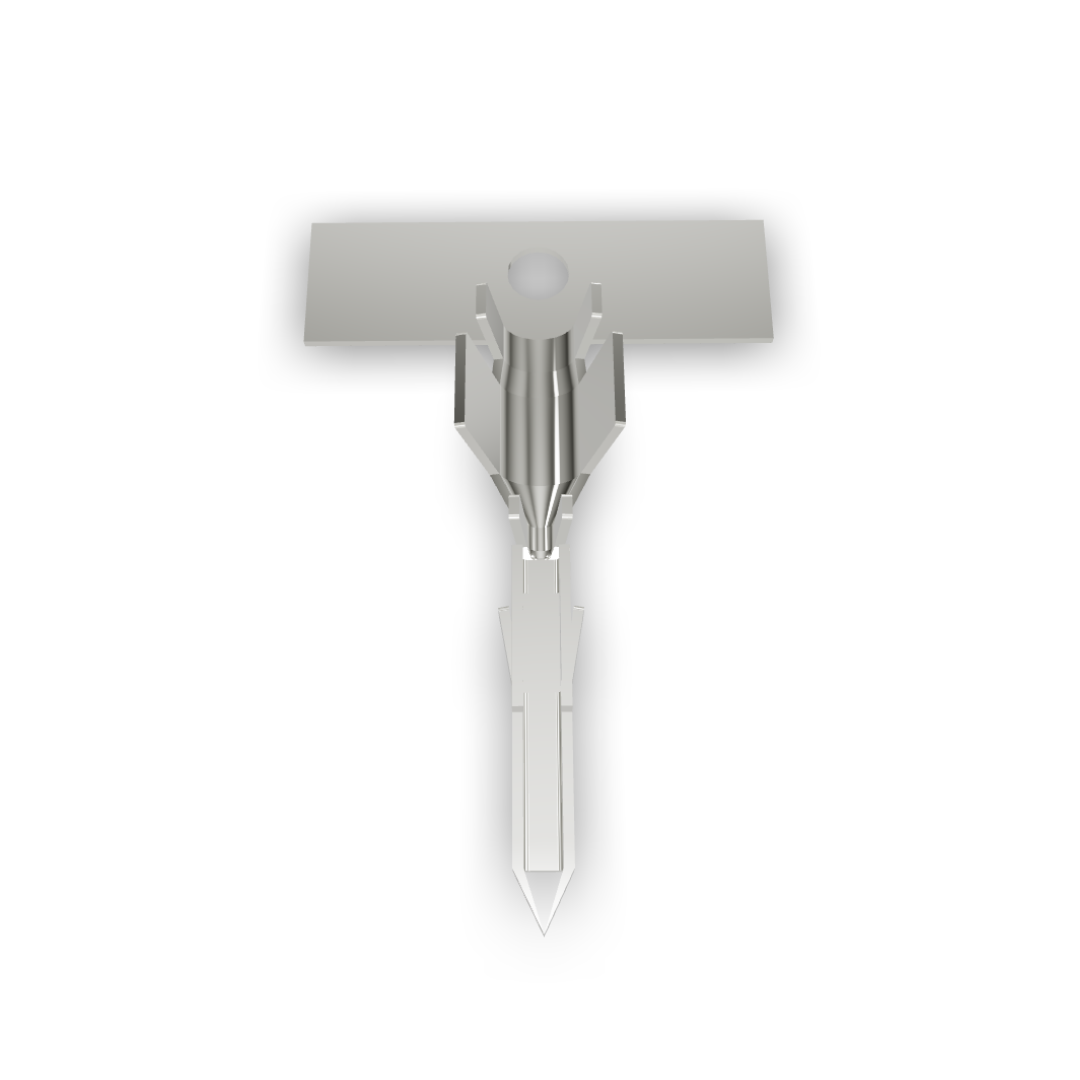

Crimp Terminal, For Plug Housing(P9049PT)
Description
The Crimp Terminal P9049PT is designed for use with plug housings, featuring a 4.2 mm pitch. Its secure connections in wire-to-board applications.
Specifications
| No.of Ways | 2-24(Double Row) |
|---|---|
| Voltage Rating | 250V AC,DC |
| Current Rating | 5A AC,DC |
| Contact Resistance | 30mΩ max |
| Insulation Resistance | 1000MΩ min |
| Dielectric Withstanding | 1500V AC/minute |
| Temperature Range | -25°C to +90°C |
| Crimp Terminal Wire Size | 18-24 AWG |
| Insulation O.D | 2.8mm max |
Material & Finish
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Square Pin | Copper Alloy, Tin Plated |
| Insulator | Nylon, UL 94V-0 |
