1mm Insulated & Non-Insulated(P8005)
Description
The insulated version provides added protection against short circuits and electrical interference, making it ideal for sensitive or high-density circuits.
Specifications
| Current Rating | 5A |
|---|---|
| Temperature Range | -25°C to +70°C |
| Mating Connectors | P8001,P8002,P8101, P8102,P8202 |
Material & Finish
| Contact | Brass, Silver/Gold Plated |
|---|---|
| Insulator | Polypropylene,Grey/Red Colour |
Part No
| Item(Pitch)A | Part Number | |
|---|---|---|
| Silver Plated | Gold Plated | |
| Insulated (5.08mm) Grey | P8005-18-11-1 | P8005-18-12-1 |
| Insulated (6.35)mm Grey | P8005-18-11-2 | P8005-18-12-2 |

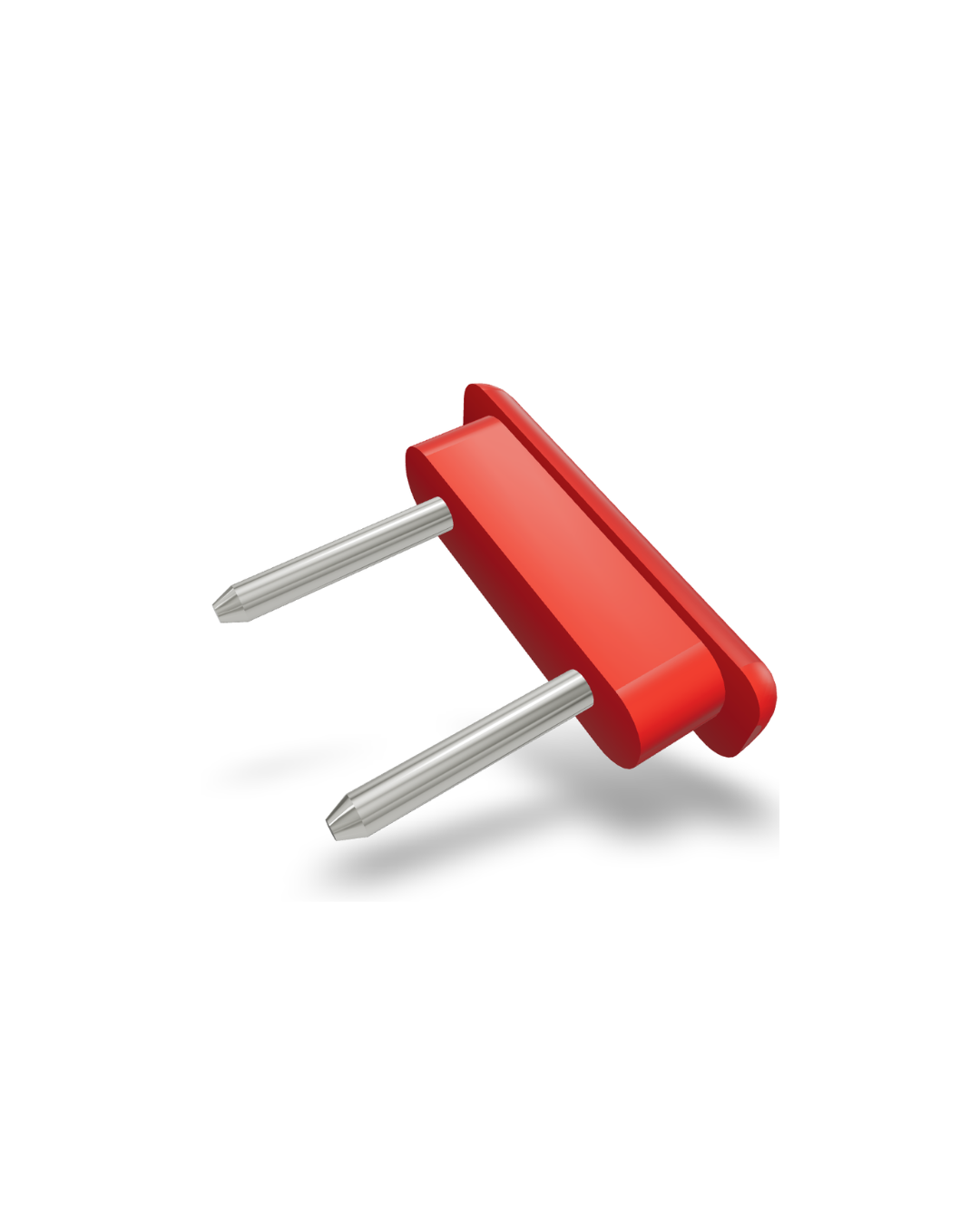

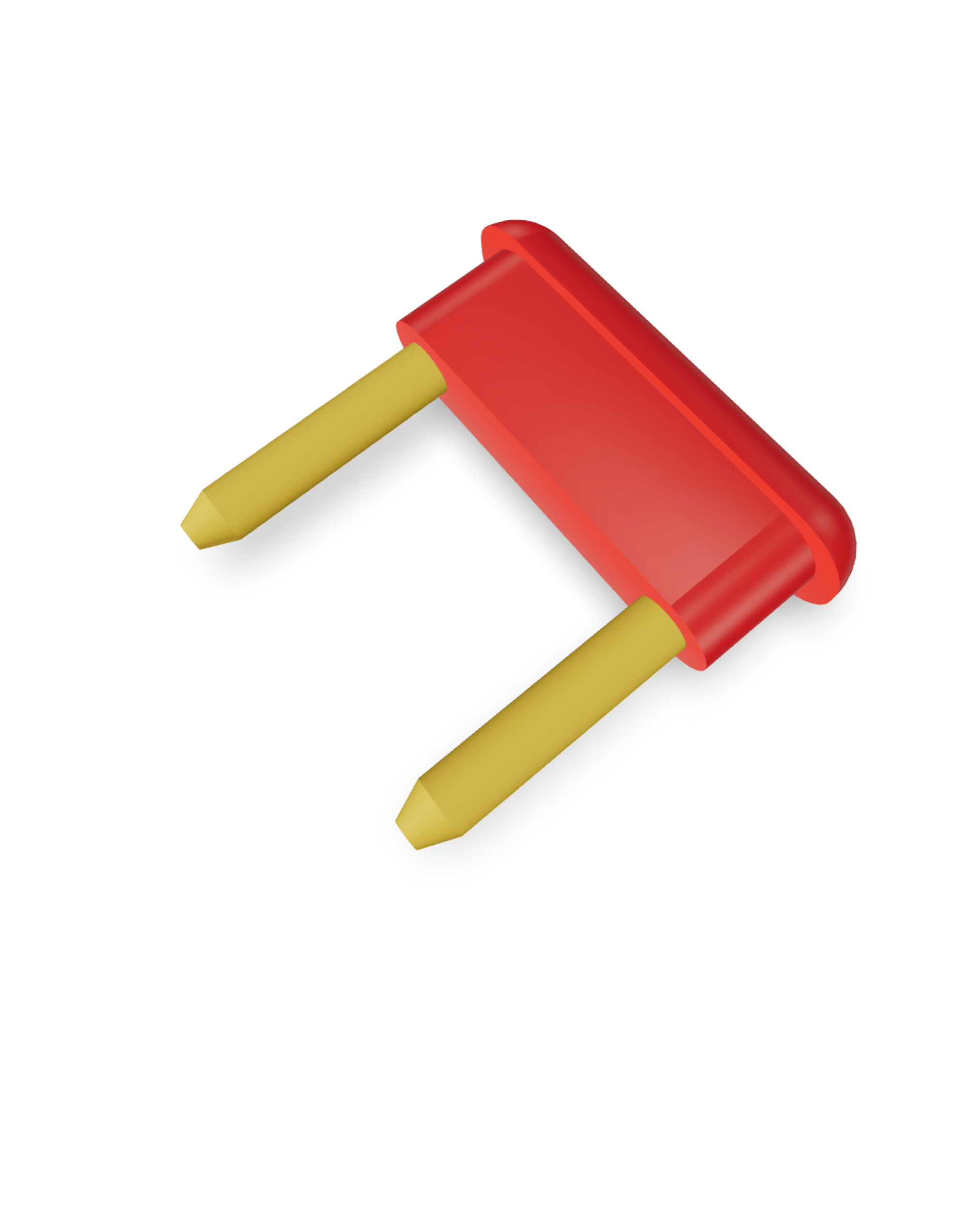

| Insulated (5.08)mm Red | P8005-12-11-1 | P8005-12-12-1 |
| Insulated (6.35)mm Red | P8005-12-11-2 | P8005-12-12-2 |
| Non-Insulated (5.08)mm | P8005-00-11-1 | P8005-00-12-1 |
| Non-Insulated (6.35)mm | P8005-00-11-2 | P8005-00-12-2 |
| Non-Insulated (10.16)mm | P8005-00-11-3 | P8005-00-12-3 |
| Non-Insulated (12.70)mm | P8005-00-11-4 | P8005-00-12-4 |
