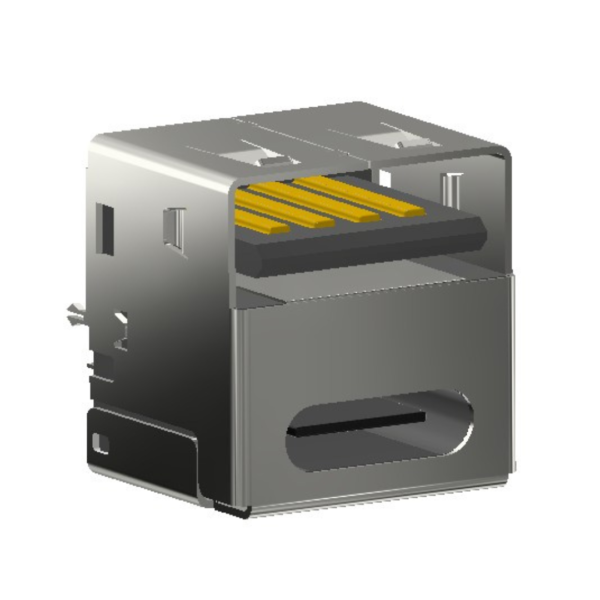

USB 2.0-RECEPTABLE (P707MIBAB-05-5)

Description

High-performance USB 2.0 receptacle for reliable and fast data transfer.

Temperature range : -30°C to +85°C

Material and finish:

Housing : Thermoplastic

Flammability: UL94V-0

CONTACT: COPPER ALLOY T=0.15mm

Shell: copper alloy T=0.25mm

Current rating : 0.5A FOR 2,3,4 CONTACTS

1.8A FOR 1,5 CONTACTS

Voltage rating : 30V AC

Contact resistance : 30MΩ max

Insulation resistance : 100MΩ MIN

dielectric withstanding: 250V AC FOR 1 MIN

P707MIBAB-05-5
