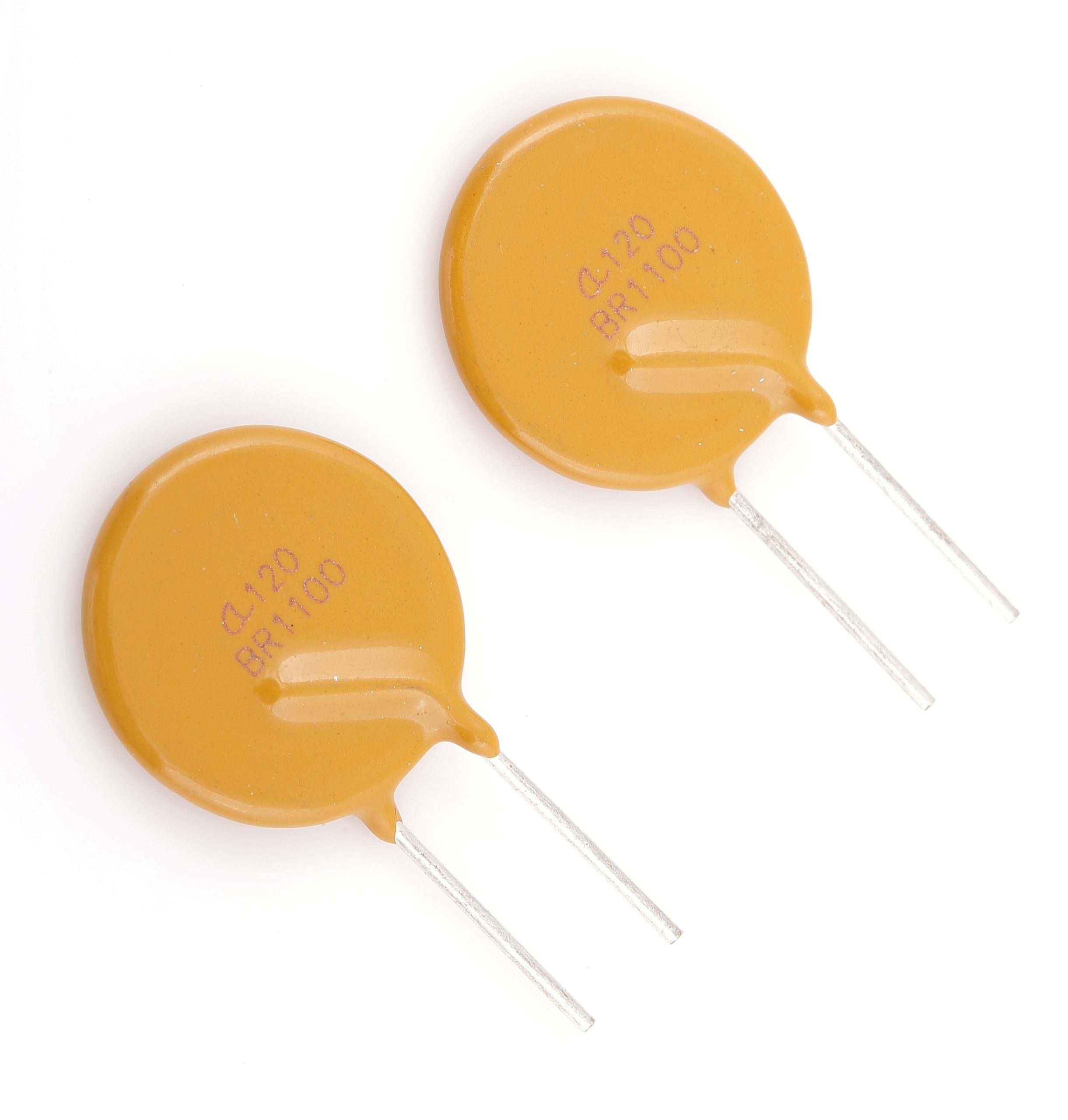

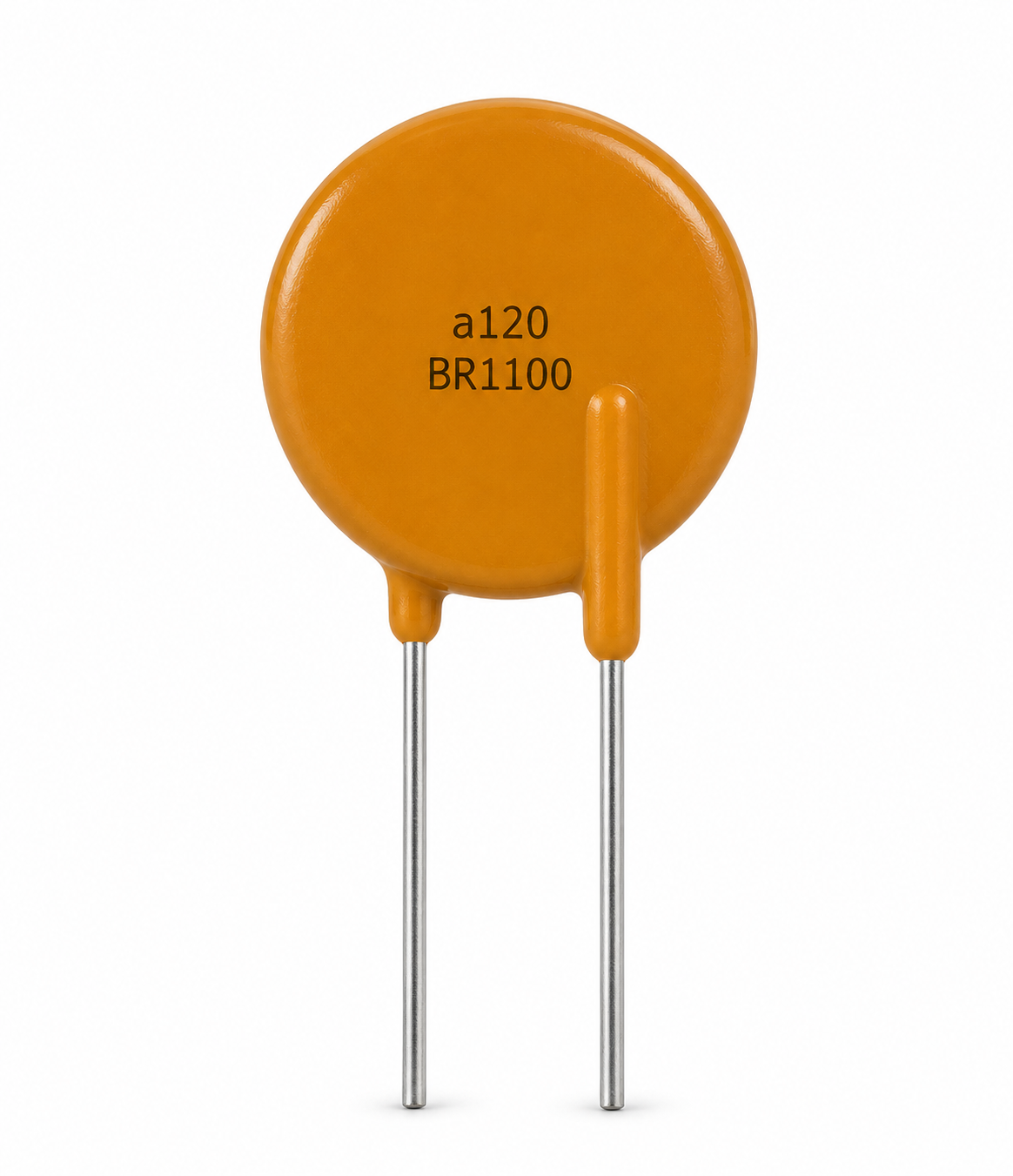

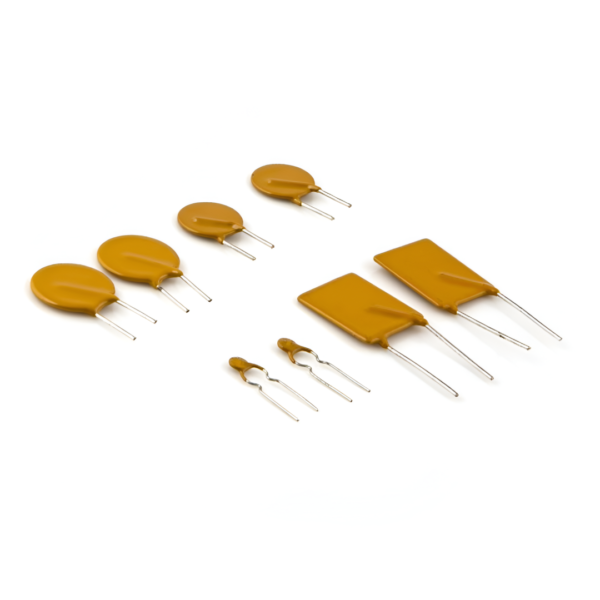

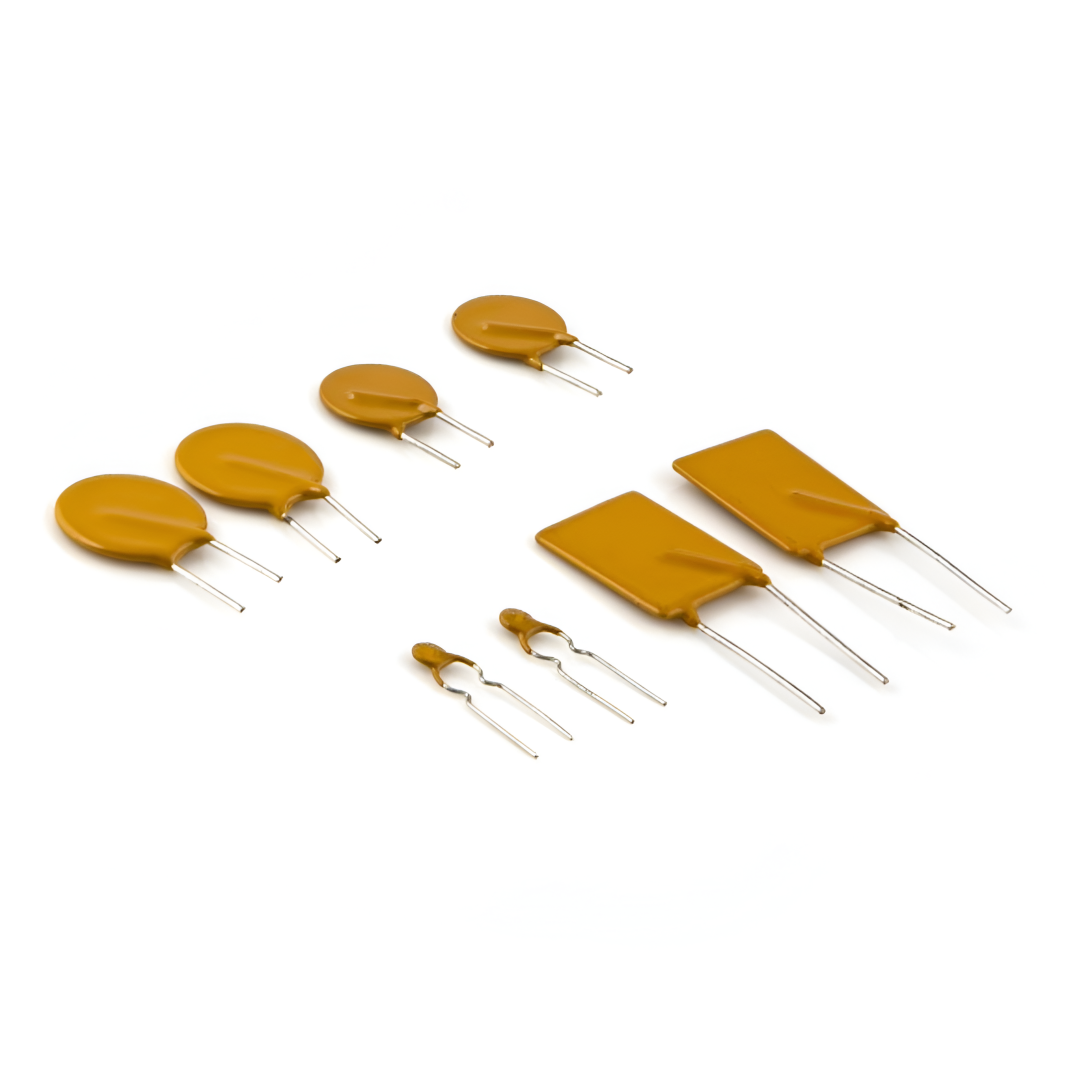

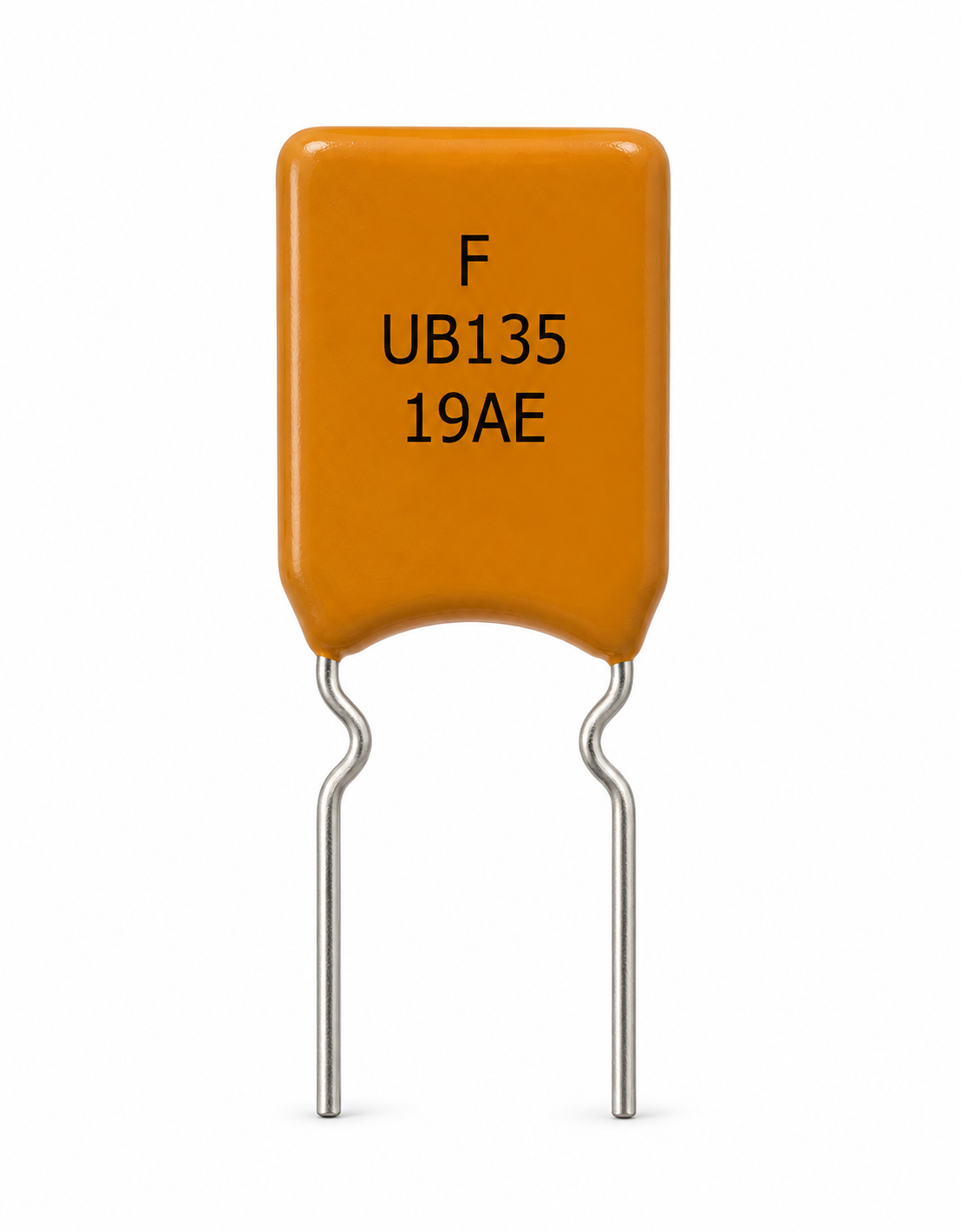

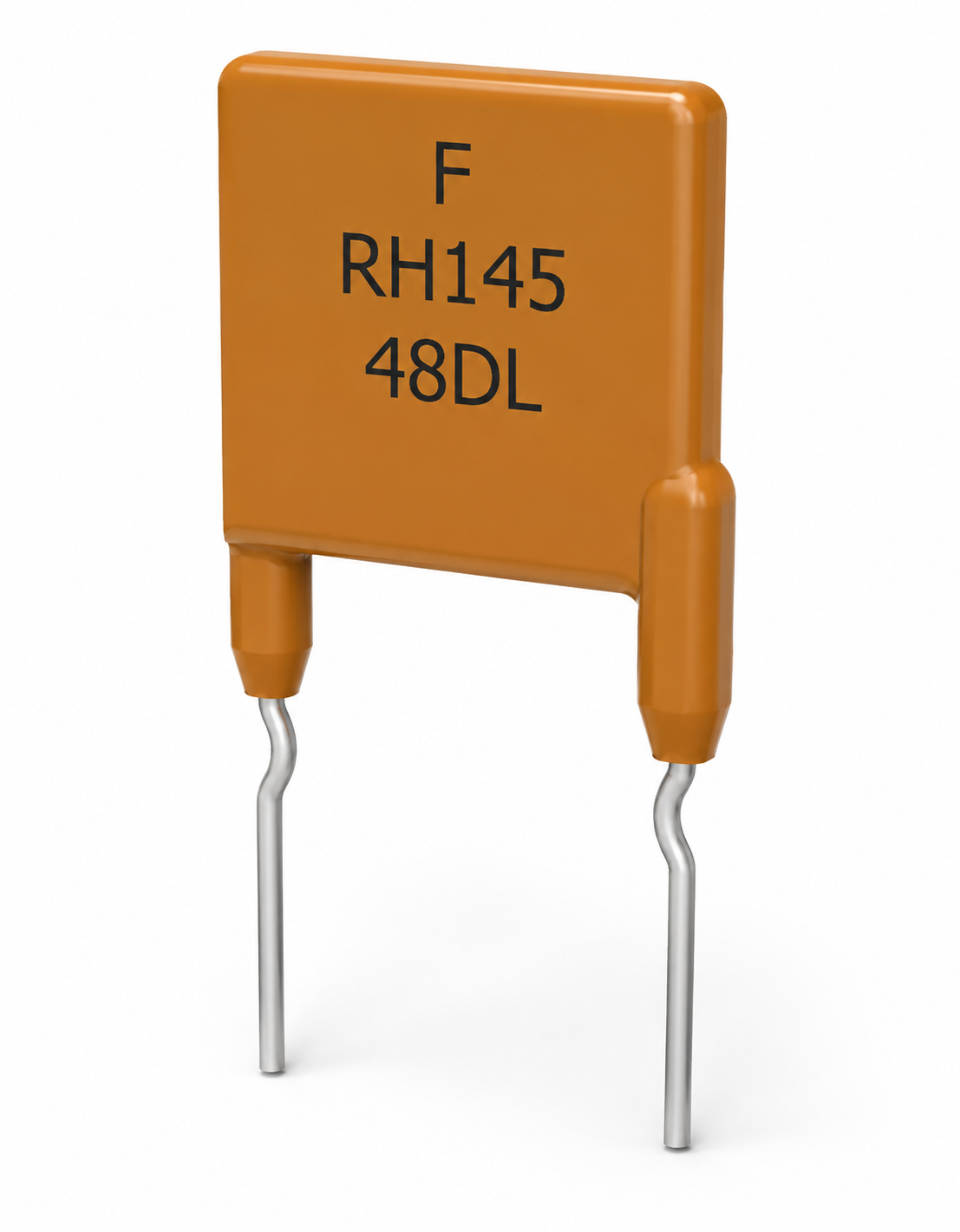

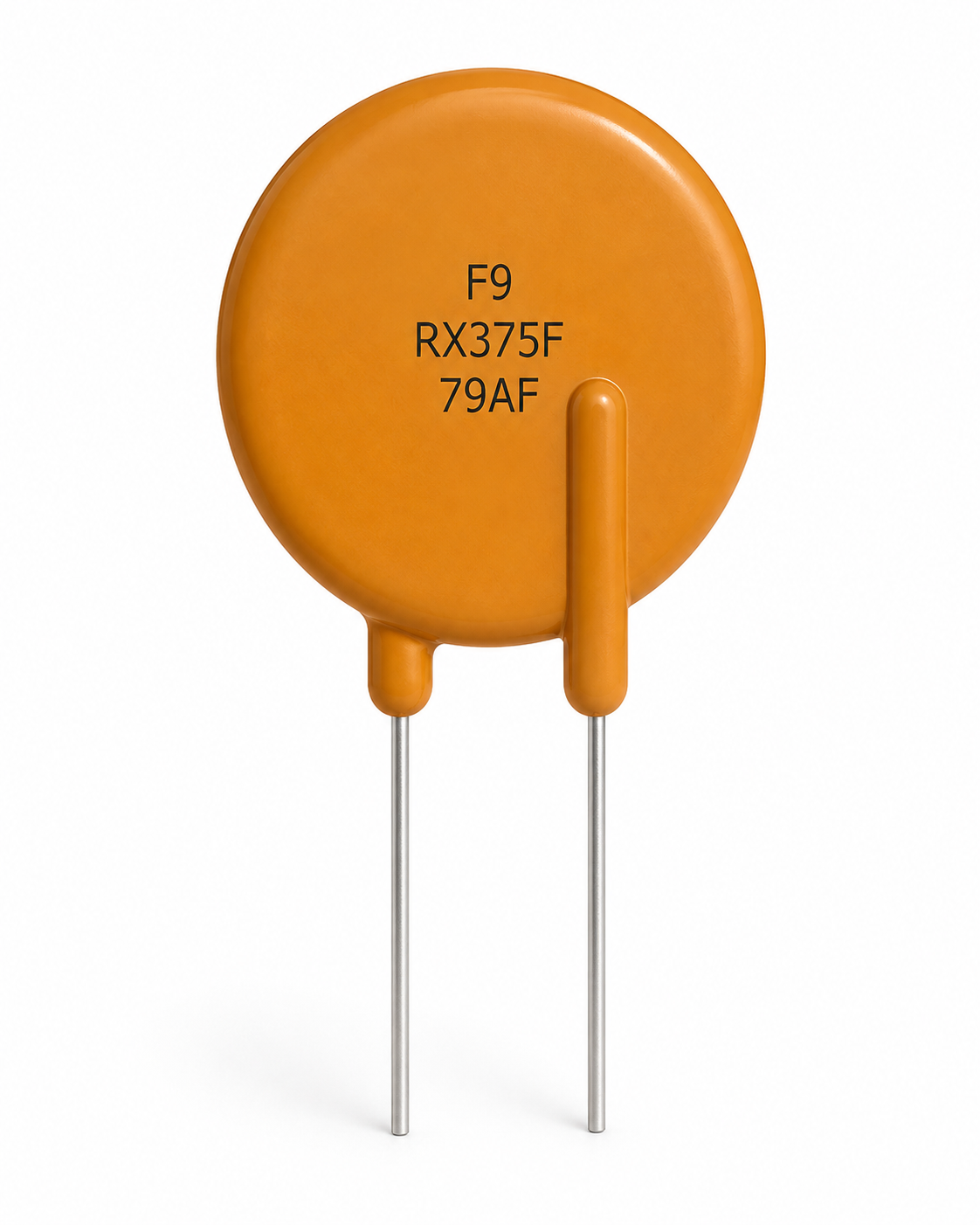

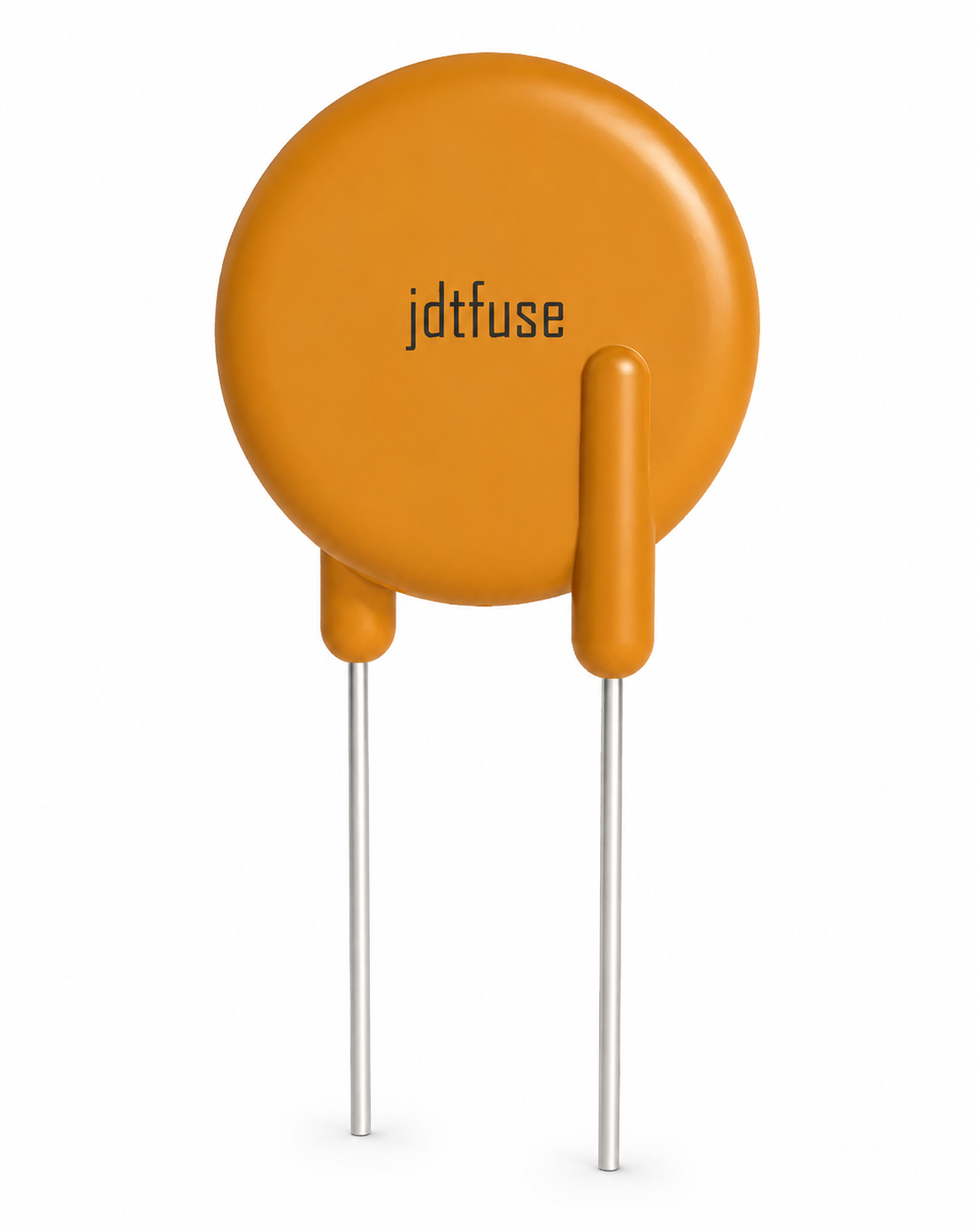

Radial Leaded PTC Devices (RLD120P)
- Description
- Specifications
- Electrical Characteristics - 120V Series
- Physical Dimensions (mm) 120V Series
- Part No
Description
These are solid-state, radial leaded components designed for overcurrent protection in electronic circuits up to 60VDC.
Specifications
| Application | Wide Variety of electronic equipment |
|---|---|
| Product Features | Low hold current, Solid state Radial-leaded product ideal for up to 120VDC/ 120VAC |
| Operation Current | 100mA~3.75A |
| Maximum Voltage | 20VDC/120VAC |
| Temperature Range | -40ºC to +85ºC |
Electrical Characteristics - 120V Series
| Part Number | I hold (A) | I trip (A) | Time max (Sec) | I max (A) | V max (V dc) | Pd max (W) | Resistance | |
|---|---|---|---|---|---|---|---|---|
| R min (Ω) | R1 max (Ω) | |||||||
| RLD120P010X | 0.10 | 0.20 | 4.0 | 2.0 | 120 | 0.57 | 2.50 | 7.50 |
| RLD120P017X | 0.17 | 0.34 | 3.0 | 2.0 | 120 | 0.59 | 2.00 | 7.00 |
| RLD120P020X | 0.20 | 0.40 | 2.2 | 2.0 | 120 | 0.62 | 1.83 | 4.40 |
| RLD120PO25X | 0.25 | 0.50 | 2.5 | 3.0 | 120 | 0.68 | 1.25 | 3.00 |
| RLD120P030X | 0.30 | 0.60 | 3.0 | 3.0 | 120 | 0.41 | 0.88 | 2.10 |
| RLD120P040X | 0.40 | 0.80 | 3.8 | 3.0 | 120 | 0.64 | 0.55 | 1.29 |
| RLD120P050X | 0.50 | 1.00 | 4.0 | 3.0 | 120 | 1.16 | 0.50 | 1.17 |
| RLD120P065X | 0.65 | 1.30 | 5.3 | 3.0 | 120 | 1.32 | 0.31 | 0.72 |
| RLD120P075X | 0.75 | 1.50 | 6.3 | 5.0 | 120 | 1.38 | 0.25 | 0.60 |
| RLD120P090X | 0.90 | 1.80 | 7.2 | 5.0 | 120 | 1.49 | 0.20 | 0.47 |
| RLD120P110X | 1.10 | 2.20 | 8.2 | 5.0 | 120 | 2.25 | 0.15 | 0.38 |
| RLD120P135X | 1.35 | 2.70 | 9.6 | 8.0 | 120 | 2.55 | 0.12 | 0.30 |
| RLD120P160X | 1.60 | 3.20 | 11.4 | 8.0 | 120 | 2.85 | 0.09 | 0.22 |
| RLD120P185X | 1.85 | 3.70 | 12.6 | 8.0 | 120 | 3.15 | 0.08 | 0.19 |
| RLD120P250X | 2.50 | 5.00 | 15.6 | 12.0 | 120 | 3.75 | 0.05 | 0.3 |
| RLD120P300X | 3.00 | 6.00 | 19.8 | 15.0 | 120 | 4.20 | 0.04 | 0.10 |
| RLD120P375 | 3.75 | 7.50 | 24.0 | 15.0 | 120 | 4.80 | 0.03 | 0.08 |
Physical Dimensions (mm) 120V Series
| Part Number | A (Max) | B (Max) | C (Typ) | D (Min) | E (Max) | Pd max (W) | ||
|---|---|---|---|---|---|---|---|---|
| RLD120P010X | 7.9 | 12.7 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P017X | 7.9 | 12.7 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P020X | 7.9 | 12.2 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120PO25X | 7.9 | 12.7 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P030X | 7.9 | 13.0 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P040X | 8.2 | 14.2 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P050X | 9.2 | 14.9 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P065X | 9.7 | 14.9 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P075X | 10.6 | 15.5 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P090X | 11.9 | 15.9 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P110X | 13.3 | 18.3 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P135X | 15.5 | 20.6 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P160X | 17.5 | 22.5 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P185X | 19.9 | 24.9 | 5.1 | 7.6 | 5.0 | 3.0 | ||
| RLD120P250X | 22.5 | 27.5 | 10.2 | 7.6 | 5.0 | 3.0 | ||
| RLD120P300X | 25.5 | 30.0 | 10.2 | 7.6 | 5.0 | 3.0 | ||
| RLD120P375 | 29.5 | 34.0 | 10.2 | 7.6 | 5.0 | 3.0 | ||
Part No
RLD120P
