MIDI BOLT DOWN FUSE (58V) (PBFT-L-In)
General Specifications
| TOP & BOTTOM HOUSING | PPA, 30% GLASS FILLED UL94-V0 |
| STRIP | COPPER, Sn PLATED / PRE-Sn PLATED |
| RIVET | ALUMINUM / CARBON STEEL |
| VOLTAGE RATING | 58V DC |
| INTERRUPTING RATING | 1000A @ 58V DC |
| REFERENCE STANDARD | ISO 8820 / UL 248-1 |
| OPERATING TEMPERATURE | -40℃ to 120℃ |
| MOUNTING TORQUE M6 | 6 Nm ± 1 Nm (TO BE TIGHTENED / MOUNTED WITH DIGITAL TORQUE WRENCH) |
| MOUNTING TORQUE M5 | 4.5 Nm ± 1 Nm (TO BE TIGHTENED / MOUNTED WITH DIGITAL TORQUE WRENCH) |
| PULL STRENGTH | 70N MIN |
| PACKING DETAILS | TRAY PACKING (120 Nos./TRAY) |
| FUSE HOLDER DATA | P803B-03 (MIDI BOLT DOWN FUSE HOLDER WITH COVER) P803B-04 (MIDI BOLT DOWN FUSE HOLDER WITH COVER – PARTIALLY OPEN TYPE – TOP COVER) |

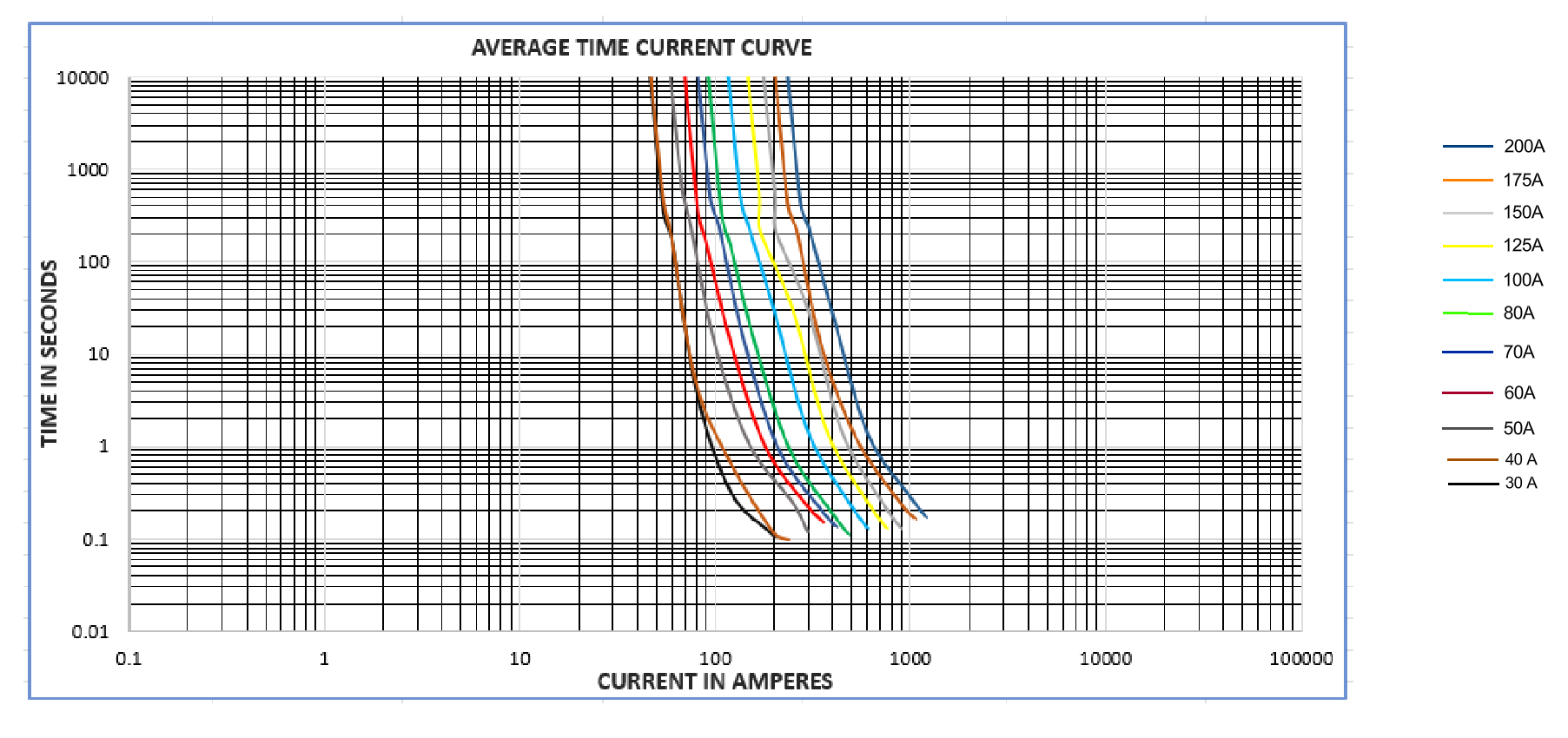

Time-Current Characteristic
NOTE: THE FUSE CHARACTERISTICS MAY CHANGE DEPENDING ON THE CONDITIONS OF USE (Ambient Temperature, cable size/connection, fuse holder/mounting, electrical connections and prospective fault current).
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||

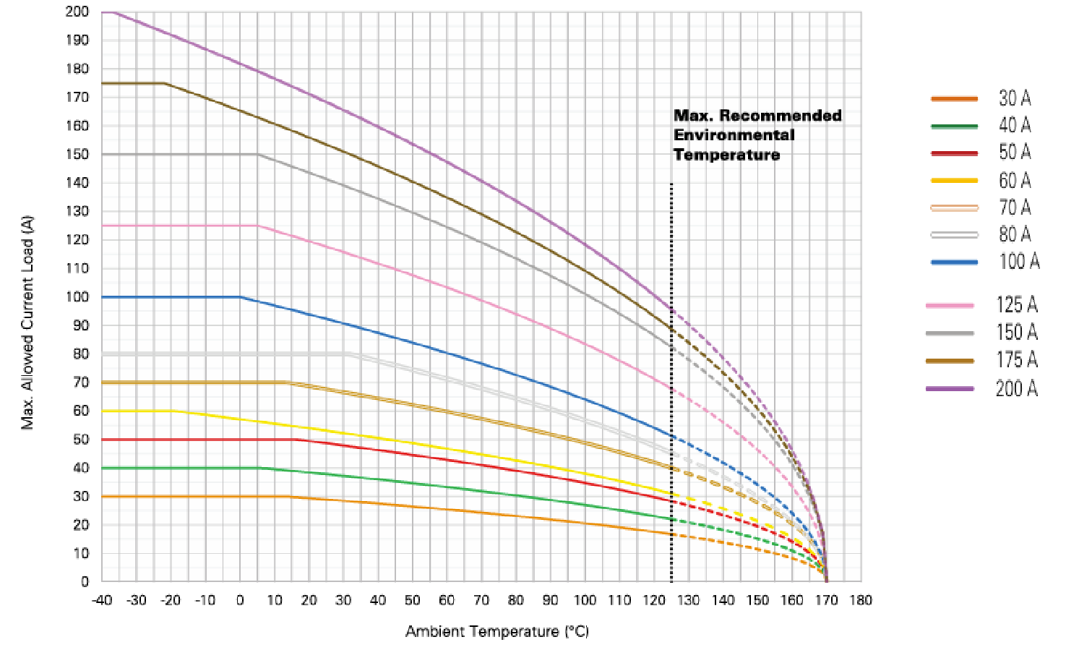

Typical Derating Of Fuse Melting(30A - 200A)
Product Details & Part Numbers
| Ampere Rating (A) | Part Number | Cold Resistance | Cable Size |
|---|---|---|---|
| 30A | PBFT-L-30A | 1.55 mΩ | 2.5 mm² |
| 40A | PBFT-L-40A | 1.35 mΩ | 4 mm² |
| 50A | PBFT-L-50A | 1.0 mΩ | 6 mm² |
| 60A | PBFT-L-60A | 0.73 mΩ | 6 mm² |
| 70A | PBFT-L-70A | 0.65 mΩ | 10 mm² |
| 80A | PBFT-L-80A | 0.57 mΩ | 10 mm² |
| 100A | PBFT-L-100A | 0.45 mΩ | 10 mm² |
| 125A | PBFT-L-125A | 0.335 mΩ | 16 mm² |
| 150A | PBFT-L-150A | 0.275 mΩ | 25 mm² |
| 175A | PBFT-L-175A | 0.28 mΩ | 25 mm² |
| 200A | PBFT-L-200A | 0.22 mΩ | 35 mm² |
