2.0MM Pitch Male Connector Dual Row Right Angle With Screw Locking ,ROHS
- Description
- Material and Finish
- Electrical Characteristics
- Mechanical Data
- Environmental Data
- Mating Part No
- Part No
Description

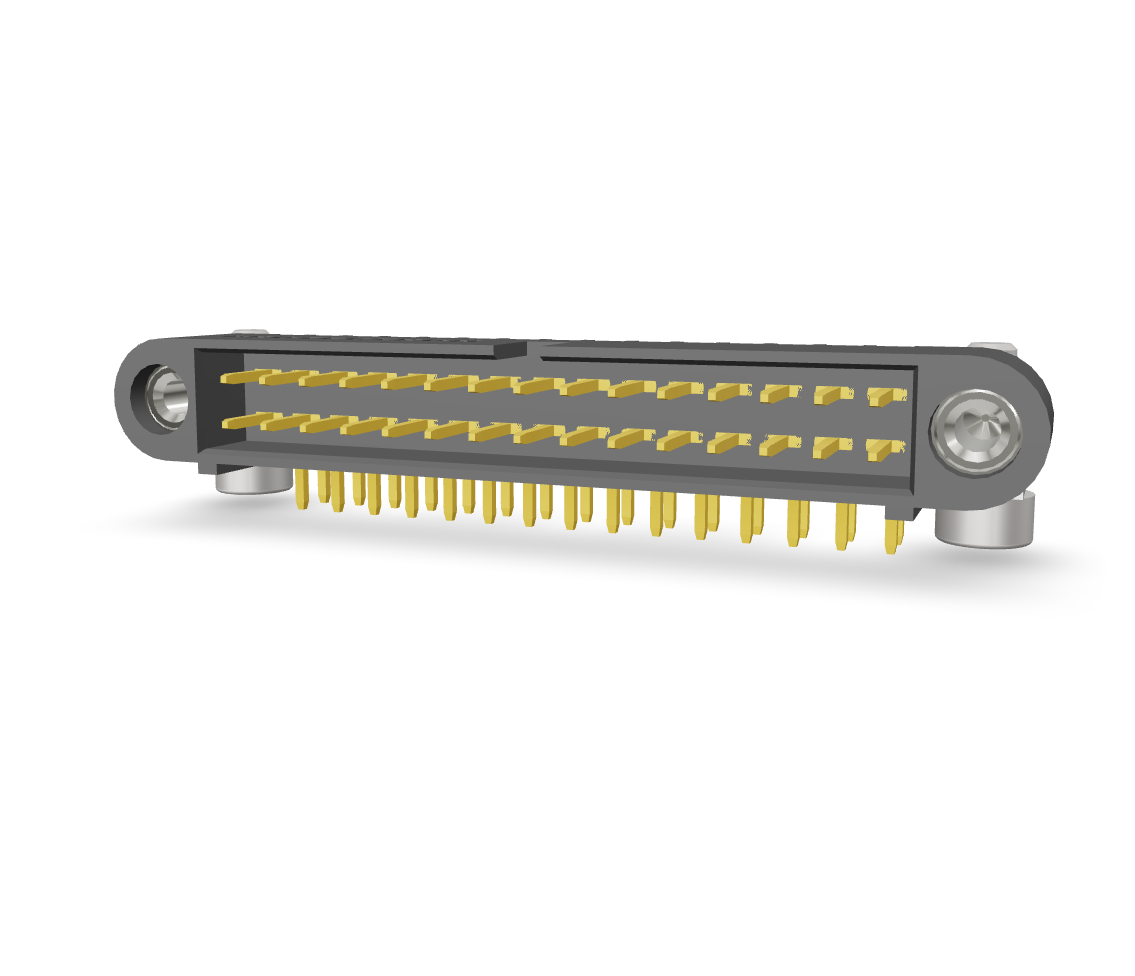

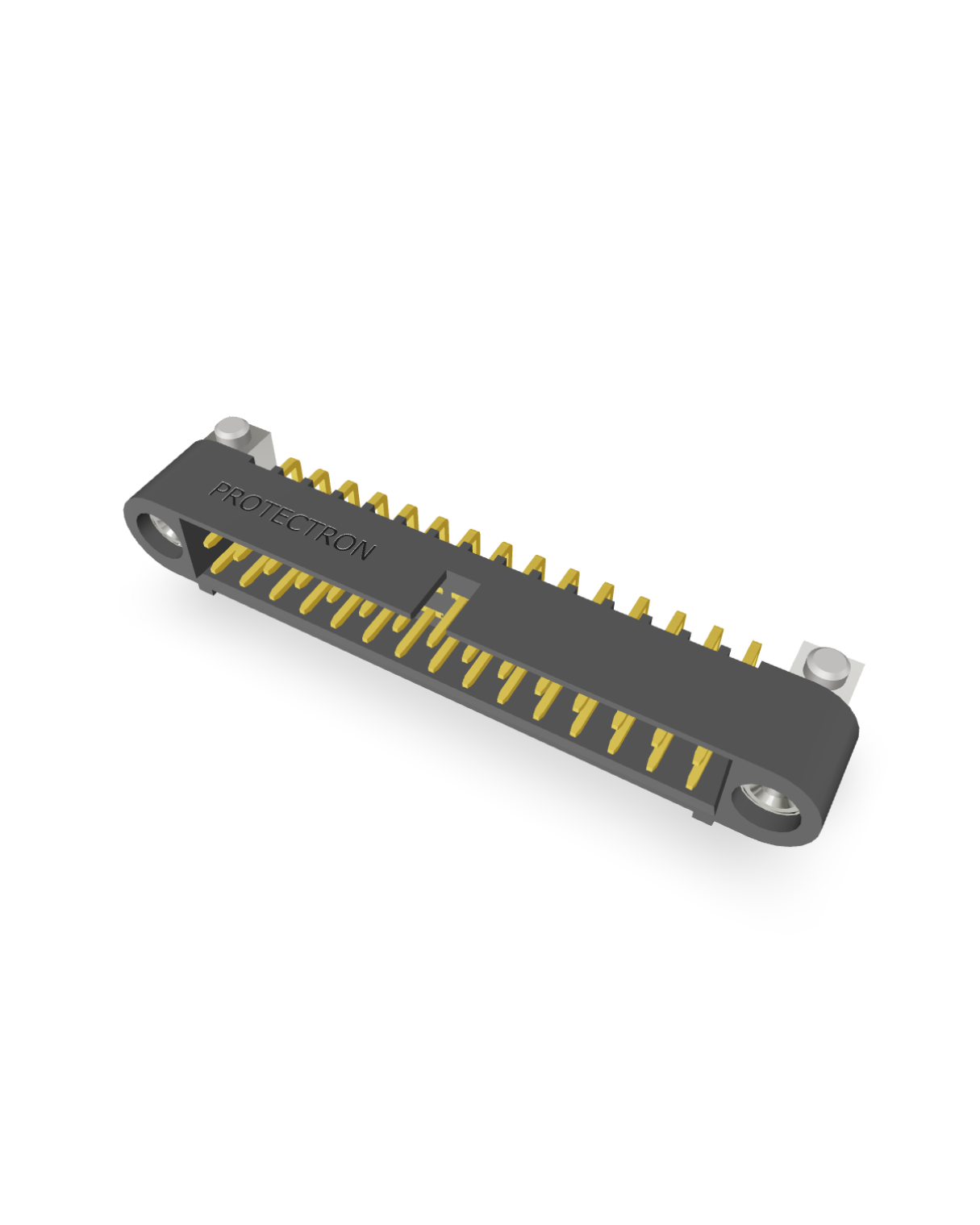

A 2.0 mm pitch dual-row right-angle male connector with screw locking, designed for secure, stable PCB connections and compliant with RoHS standards.
Material and Finish
Insulator Body: |
PPS (Polyphenylene Sulfide Fibreglass Filled Thermoplastic) |
Flammability: |
UL94V-0 |
Contact Area: |
Copper Alloy / Ni+Au Flash 0.1µ |
Contact Tail: |
Copper Alloy / Ni+Au Flash 0.1µ |
Fixing Hardware: |
Jackscrew (Stainless Steel) |
Electrical Characteristics
All Contacts: |
3A Max. @25°C2.2A Max. @85°C |
Working Voltage (Sea Level) |
800V DC |
Proof Voltage |
1200V DC |
Contact Resistance (Initially) |
10 mΩ Max |
Insulation Resistance |
1000 mΩ Max. |
Mechanical Data
Mechanical Operations: |
500 Cycles Min. Up To 2500 |
Contact Insertion And Withdrawal Force |
2N Max / 0.2N Min Per Contact |
Environmental Data
Temperature Range: |
From -60°C To +125°C |
Mating Part No
Female Connector: |
P808FC-XX-1 |
Part No
P808R-XX-47-J
