Top and Side Entry Jack Tip Ø2.03mm(P8020)
Description
P8020
SPECIFICATIONS
| Voltage Rating | 600V |
|---|---|
| Current Rating | 4A max |
| Contact Resistance | 5mΩ max |
| Insulation Resistance | 10000MΩ min |
| Dielectric withsatnding | 2500V rms |
| Temperature Range | -40°C to +70°C |
| Insertion Force | 2.2kg max |
| Extraction Force | 0.22kg min |
MATERIAL & FINISH
| Contact | Beryllium Copper, Silver/Gold Plated |
|---|---|
| Insulator | Polypropylene |
ORDERING INFORMATION
| Colour | Part Number(L=3.3mm) | |
|---|---|---|
| Silver Plated | Gold Plated | |

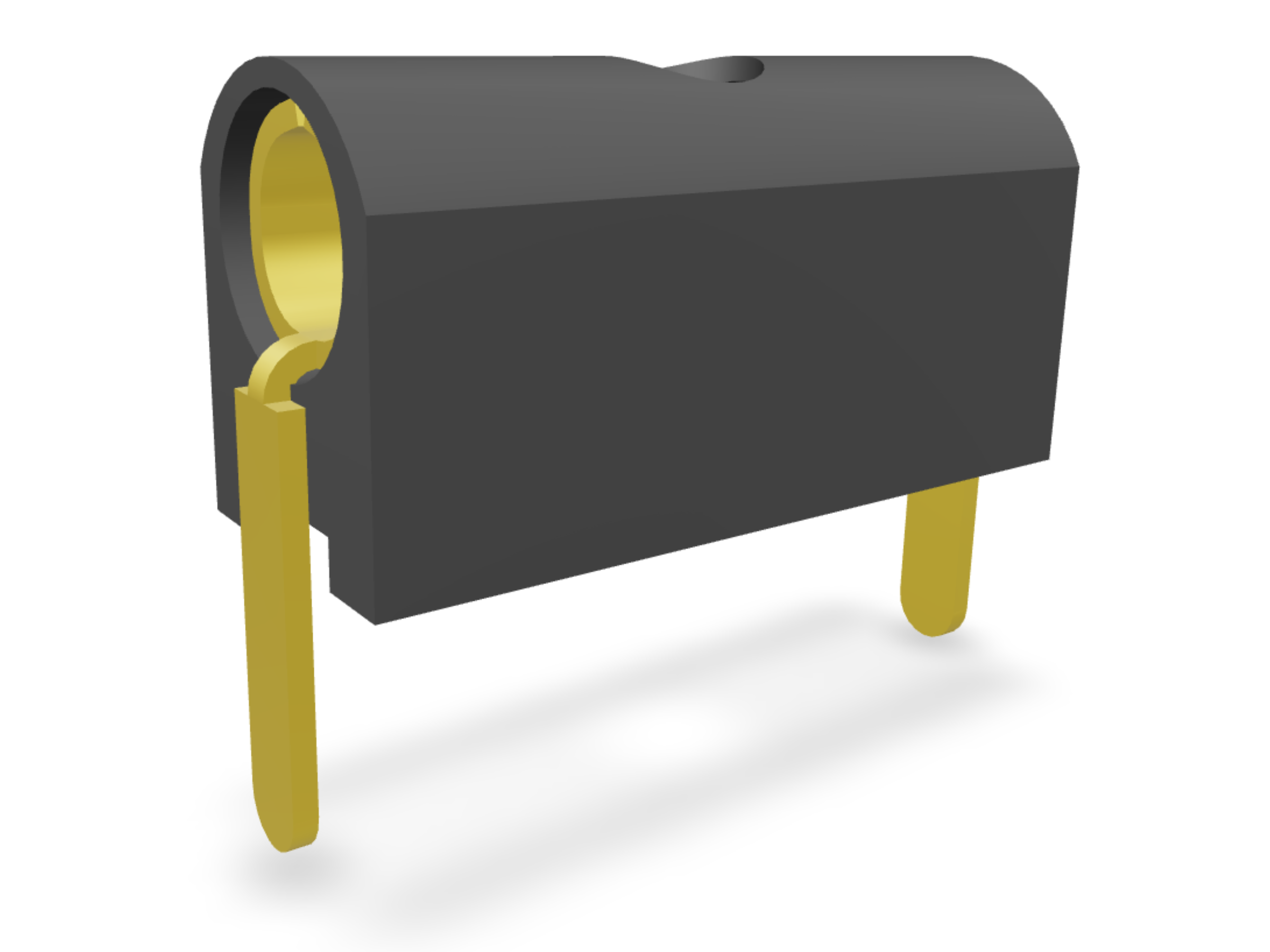

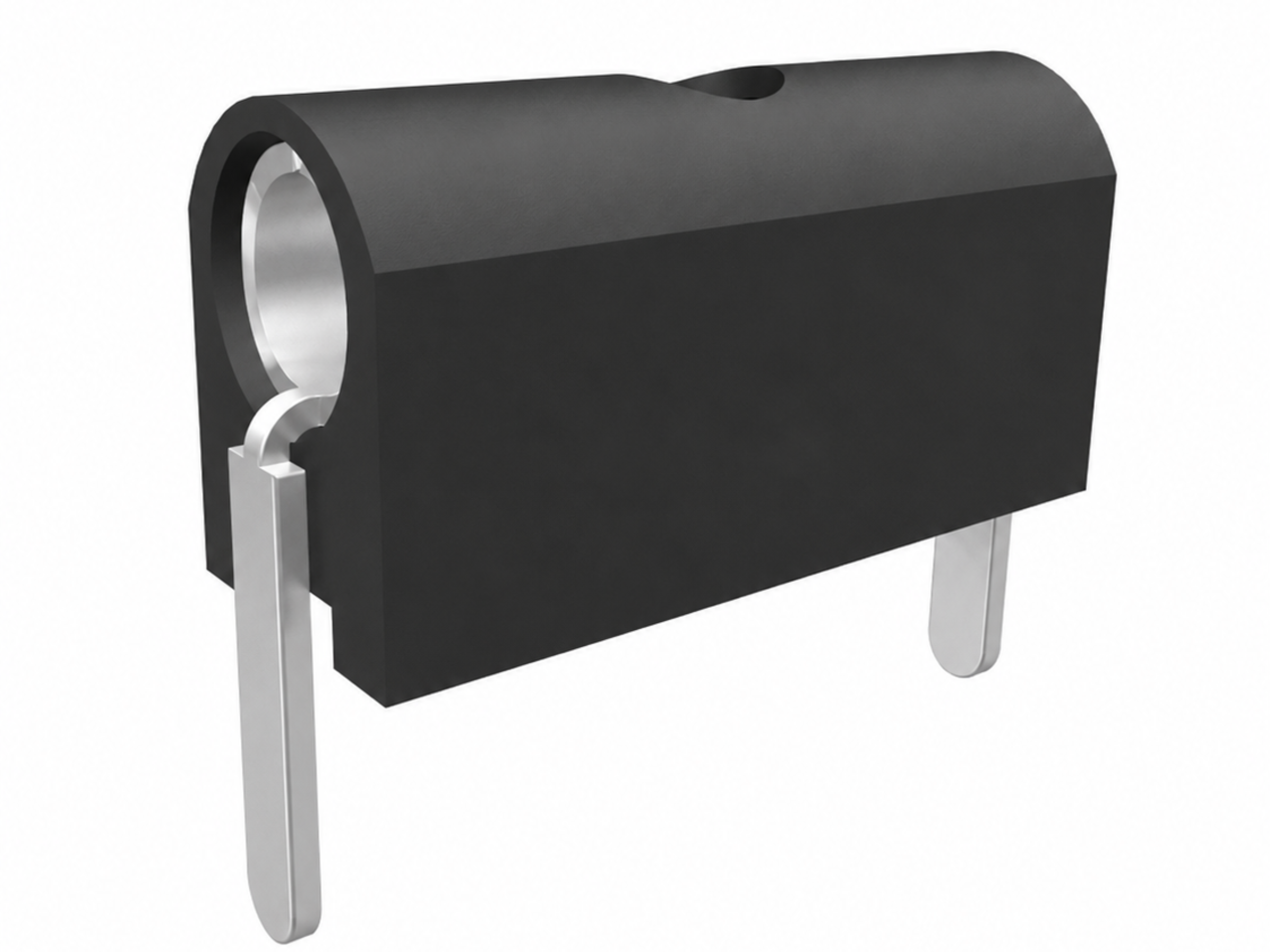

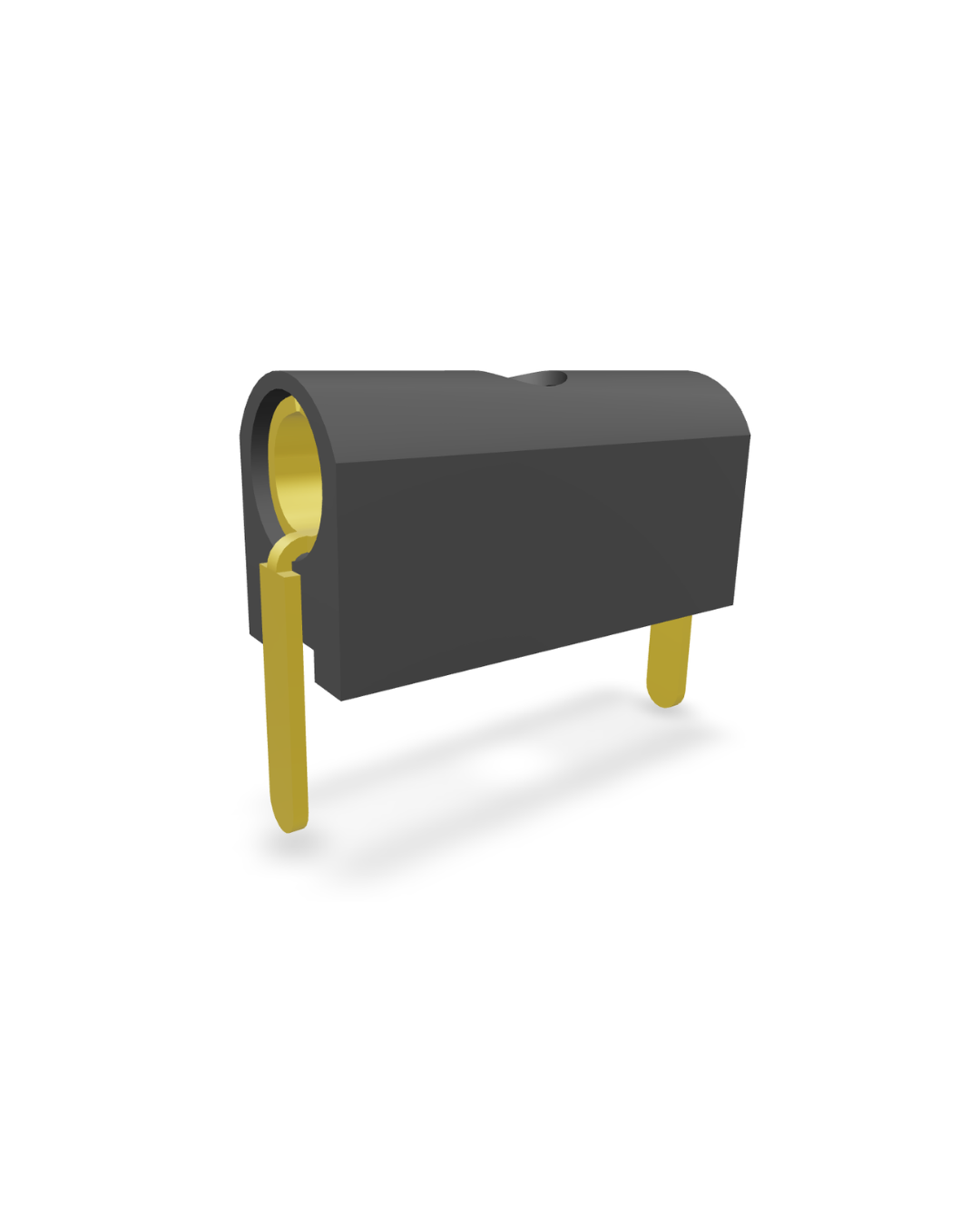

| Black | P8020-10-31-T | P8020-10-32-T |

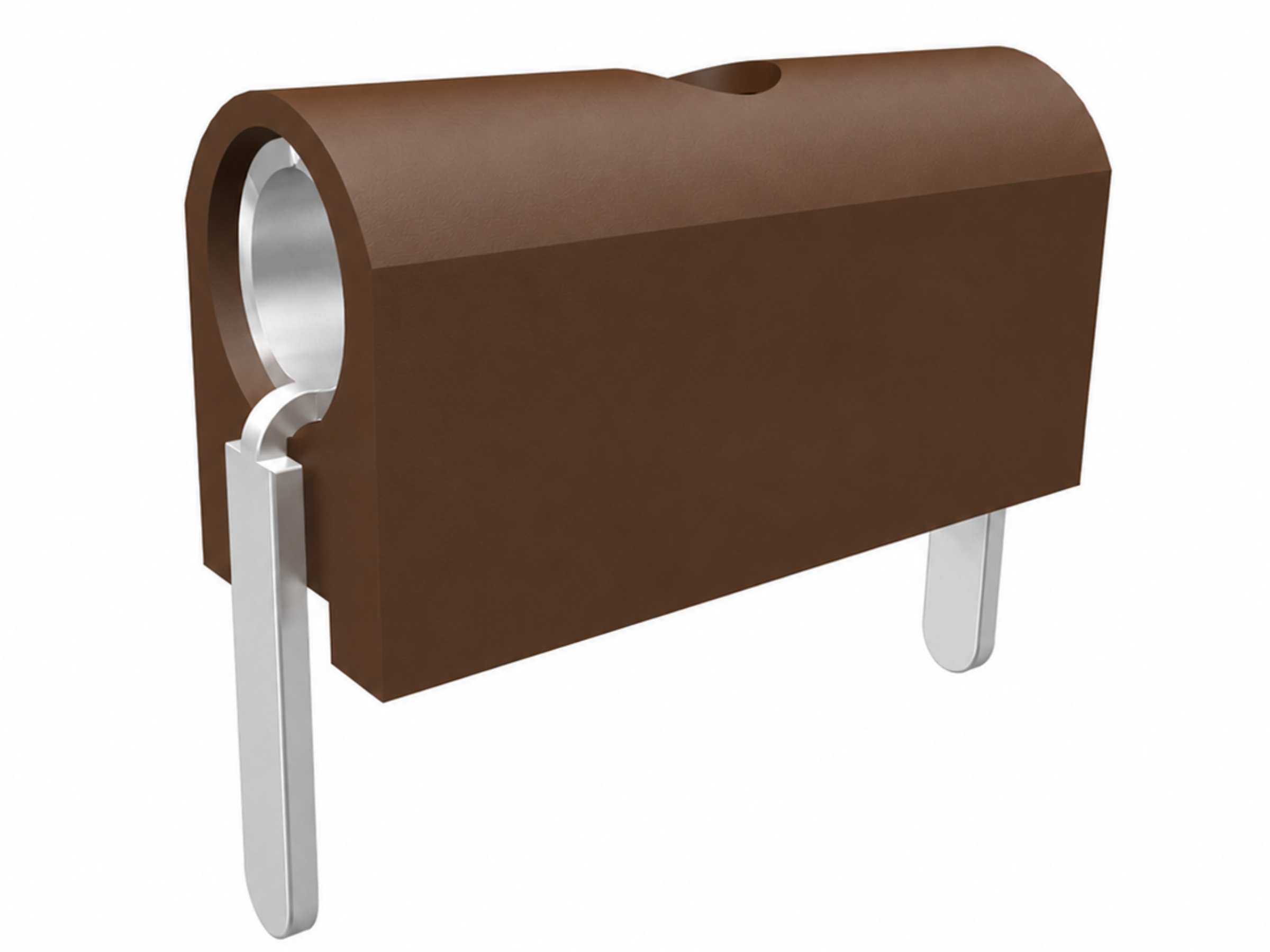

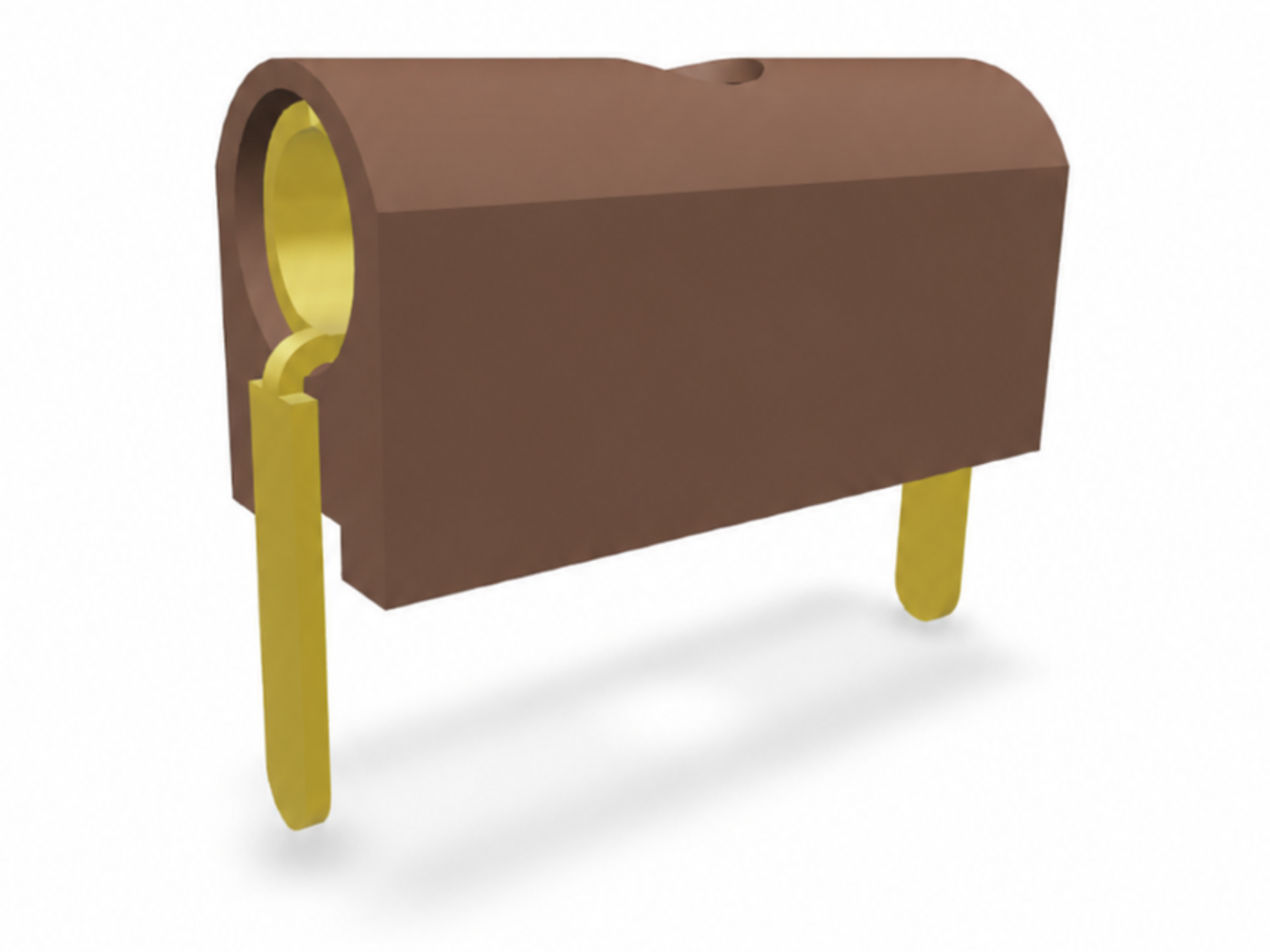

| Brown | P8020-11-31-T | P8020-11-32-T |

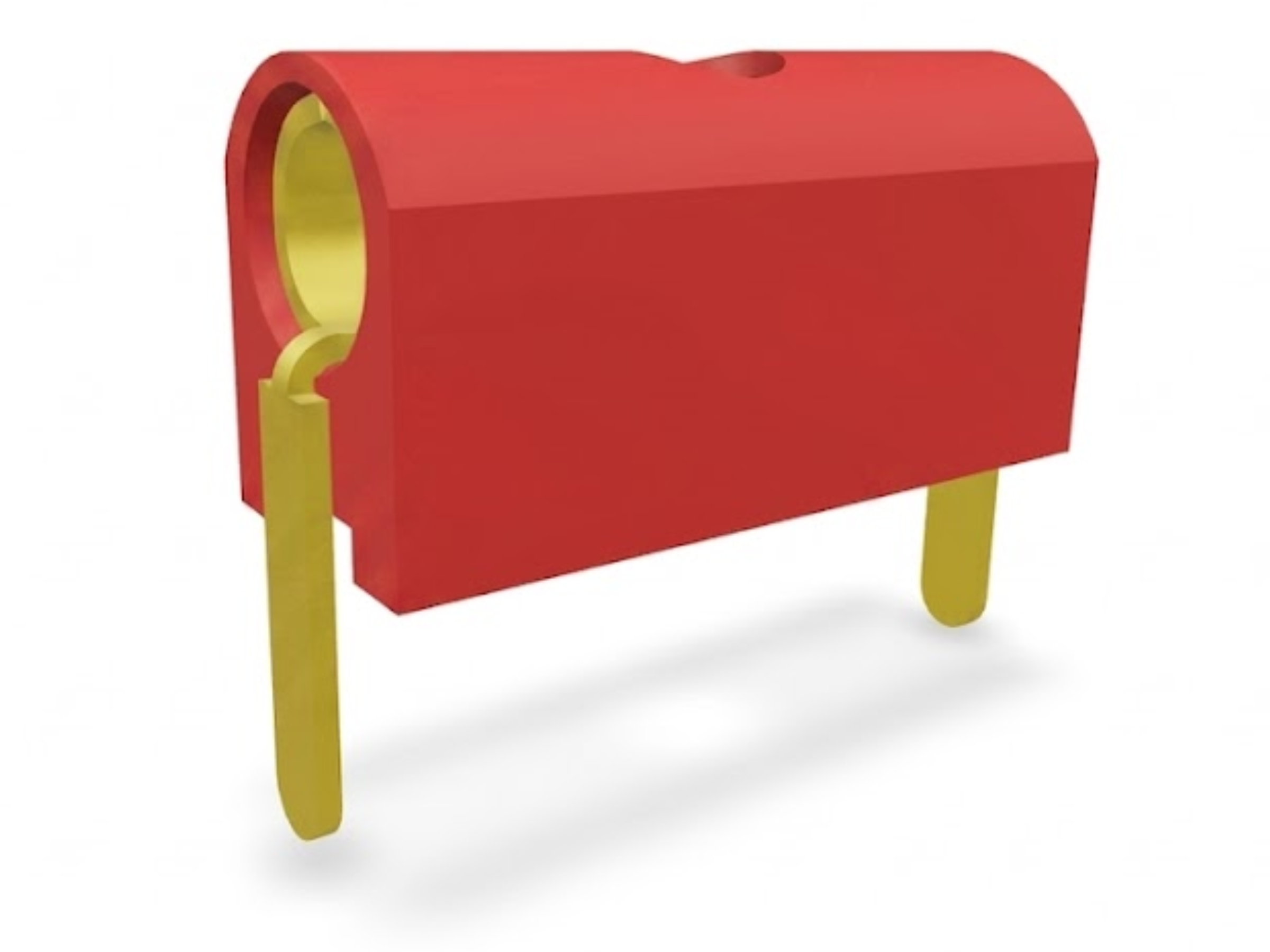

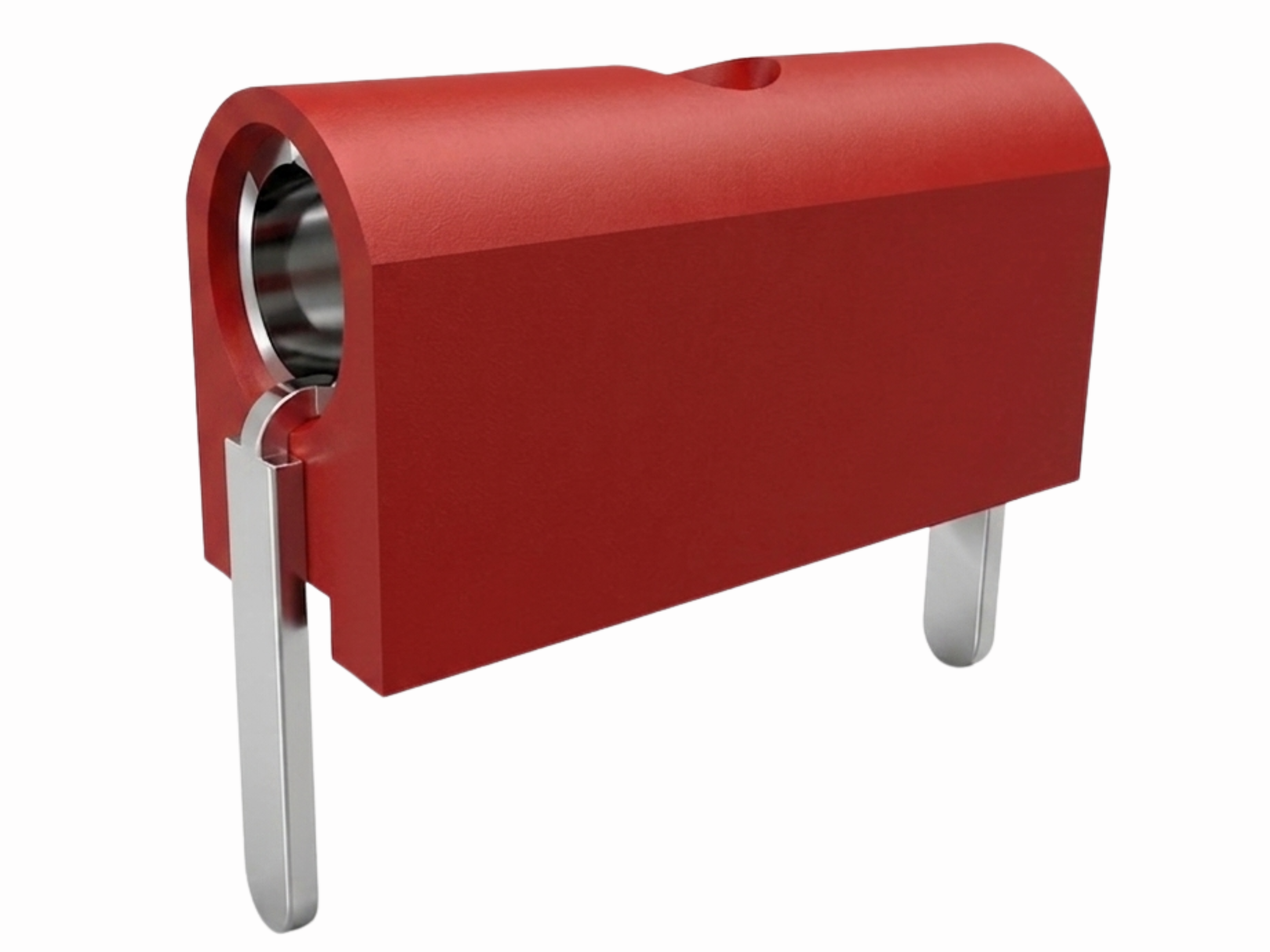

| Red | P8020-12-31-T | P8020-12-32-T |

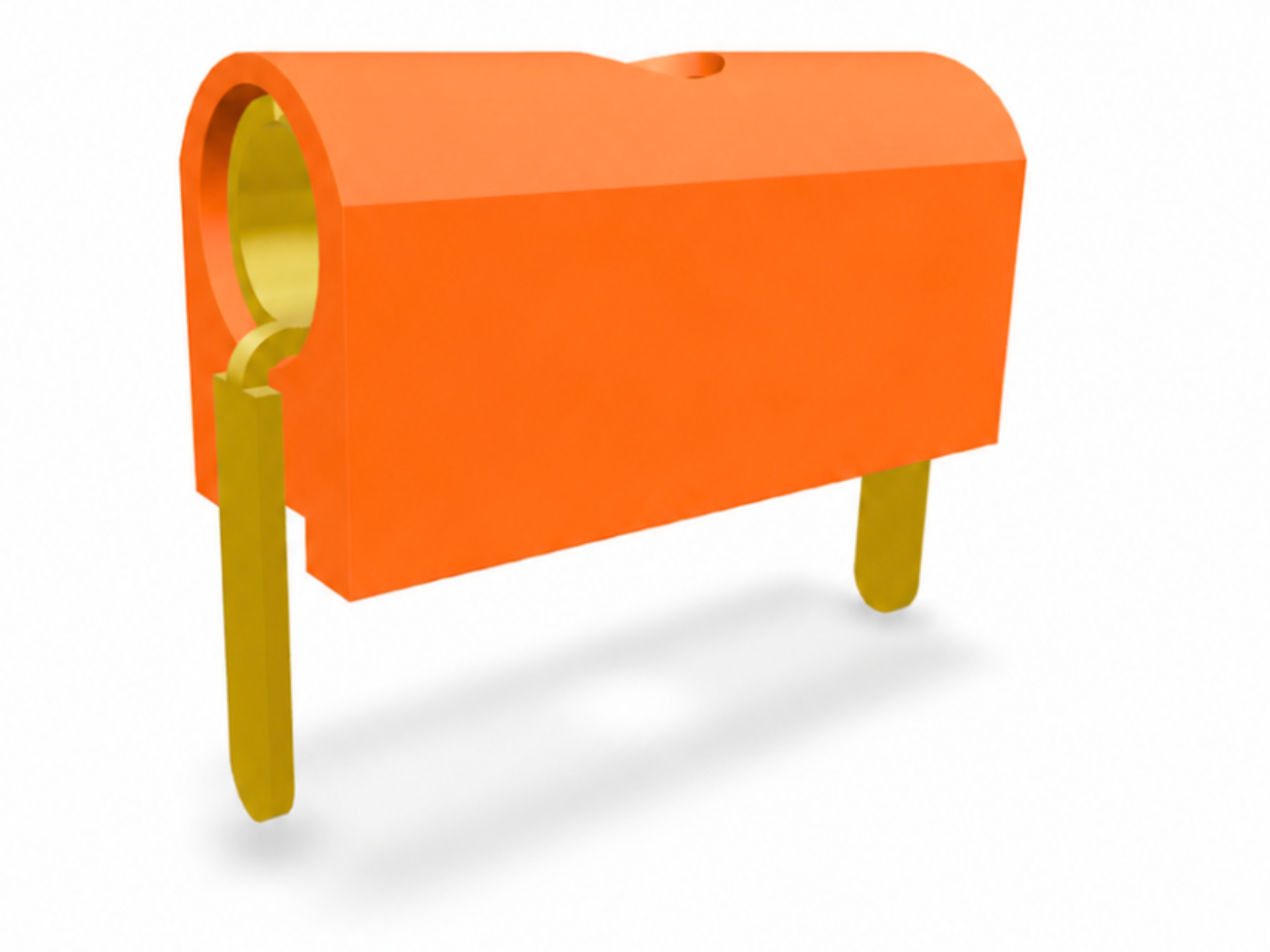

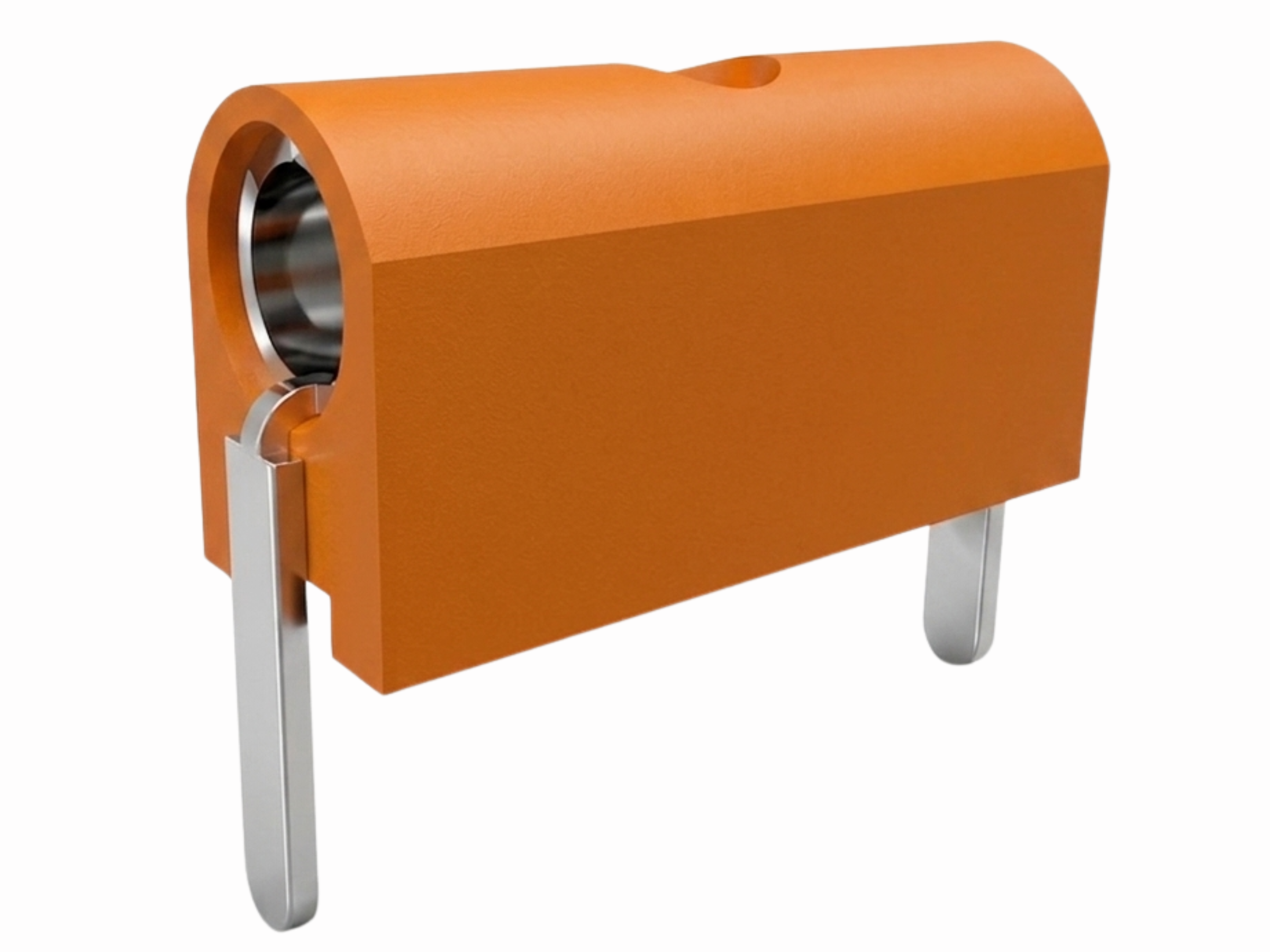

| Orange | P8020-13-31-T | P8020-13-32-T |

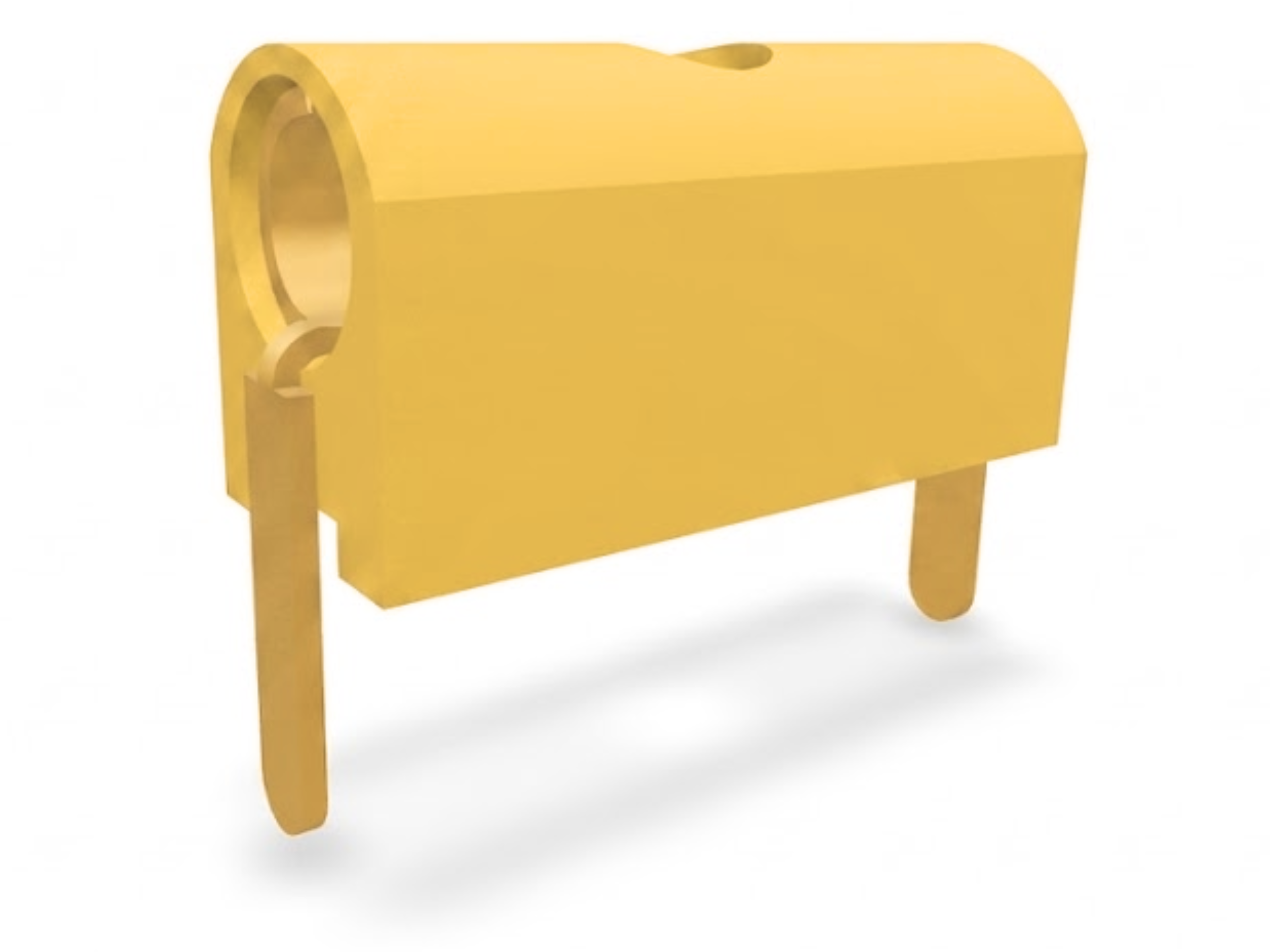

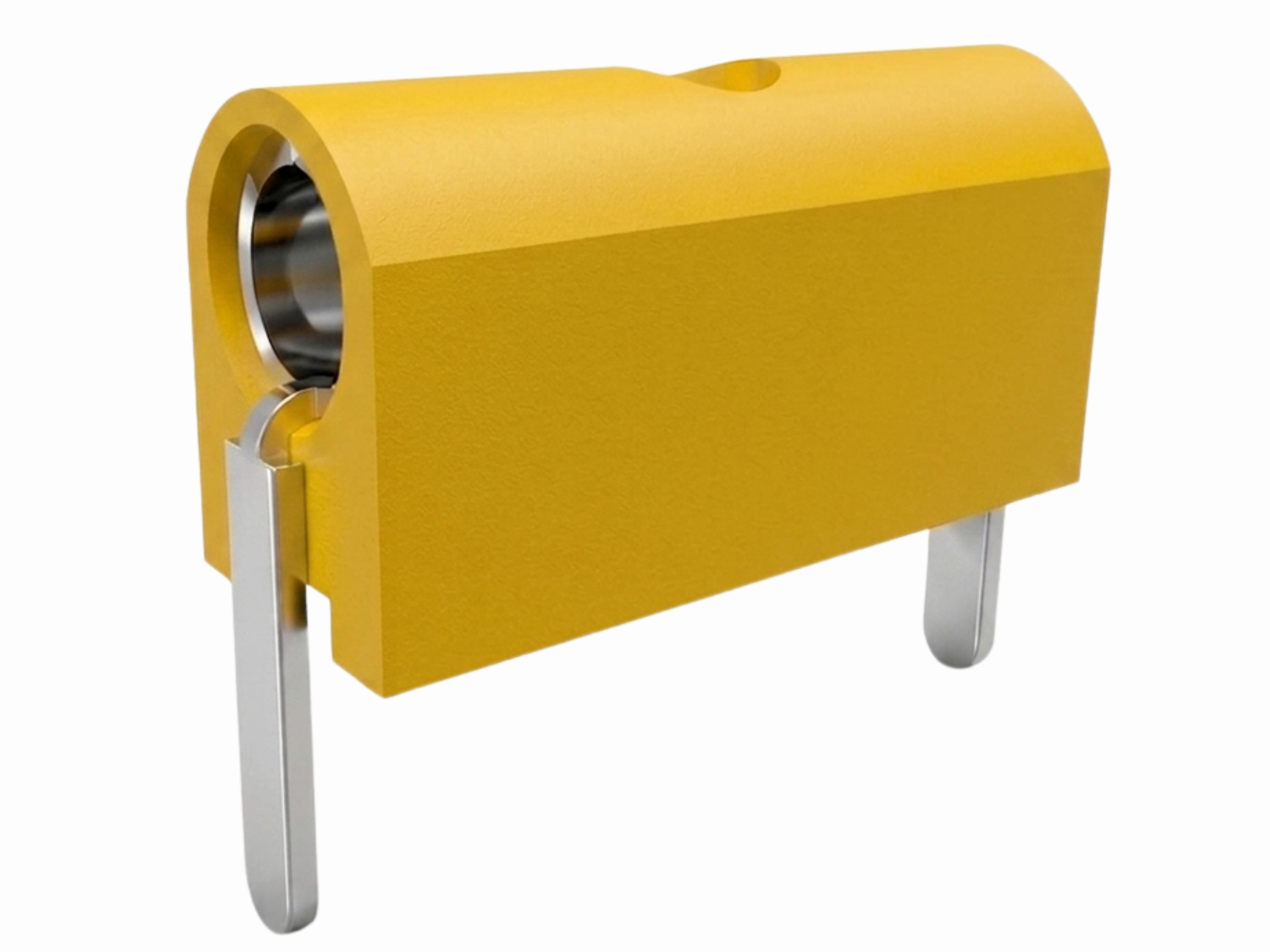

| Yellow | P8020-14-31-T | P8020-14-32-T |

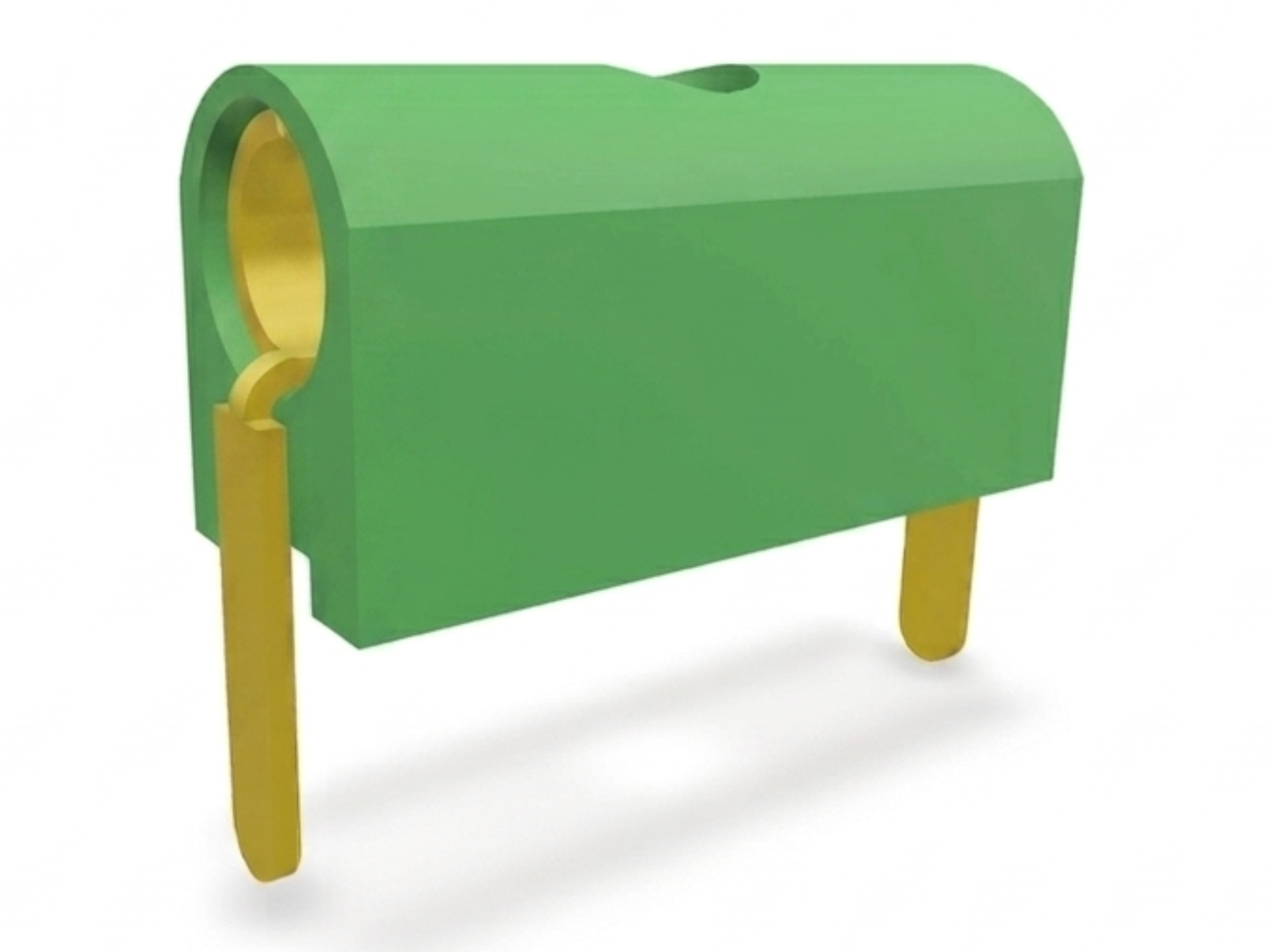

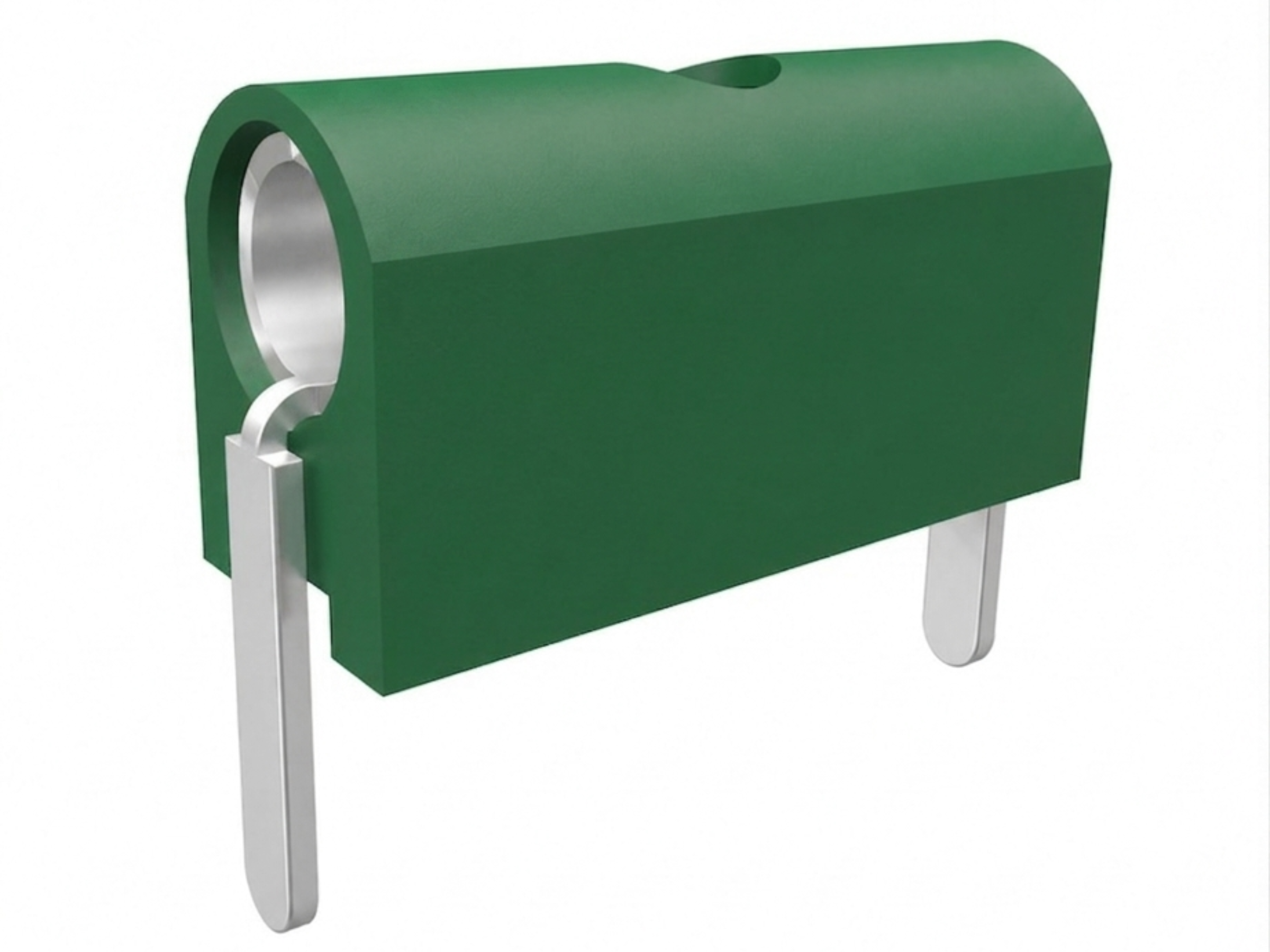

| Green | P8020-15-31-T | P8020-15-32-T |

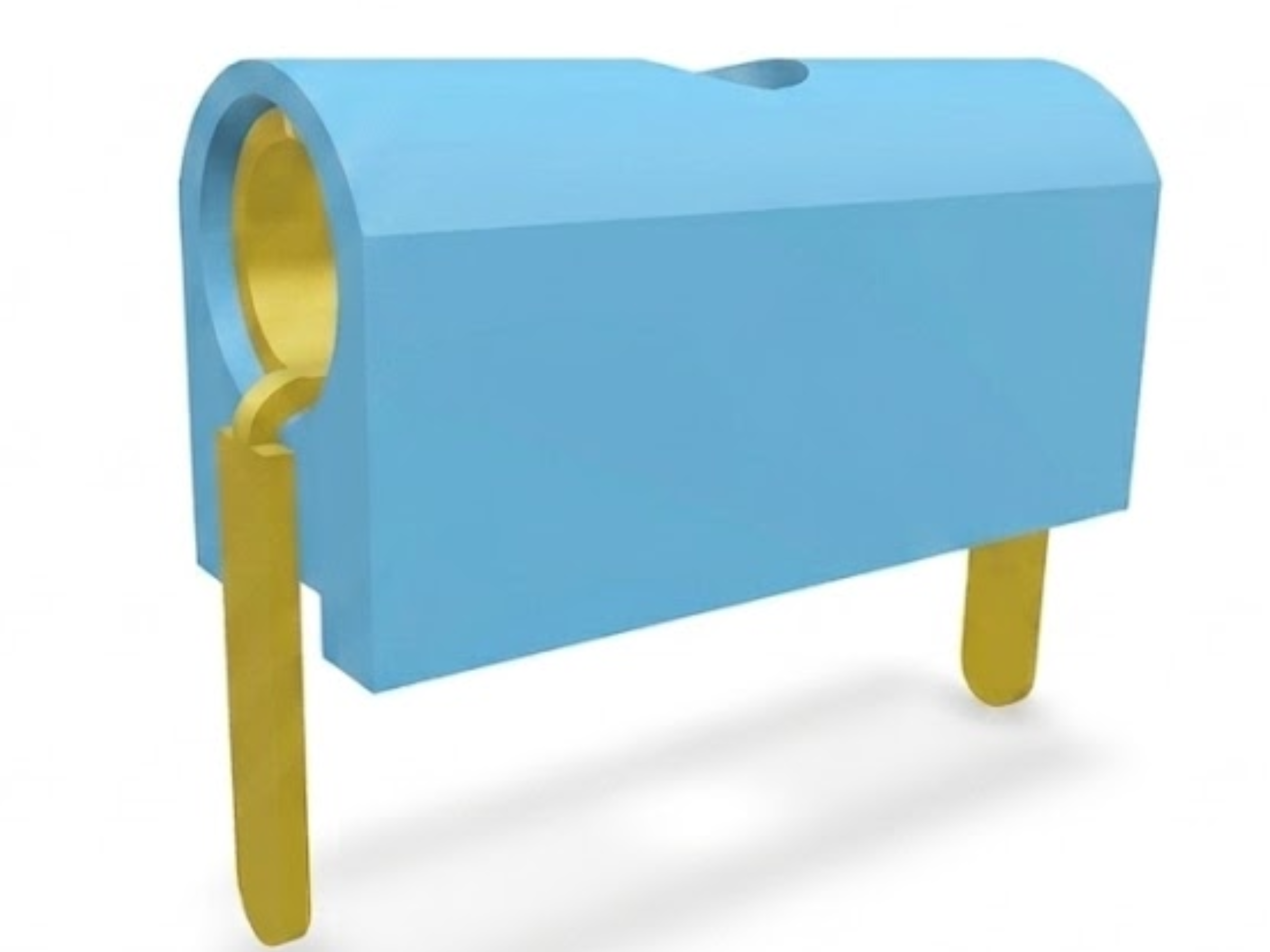

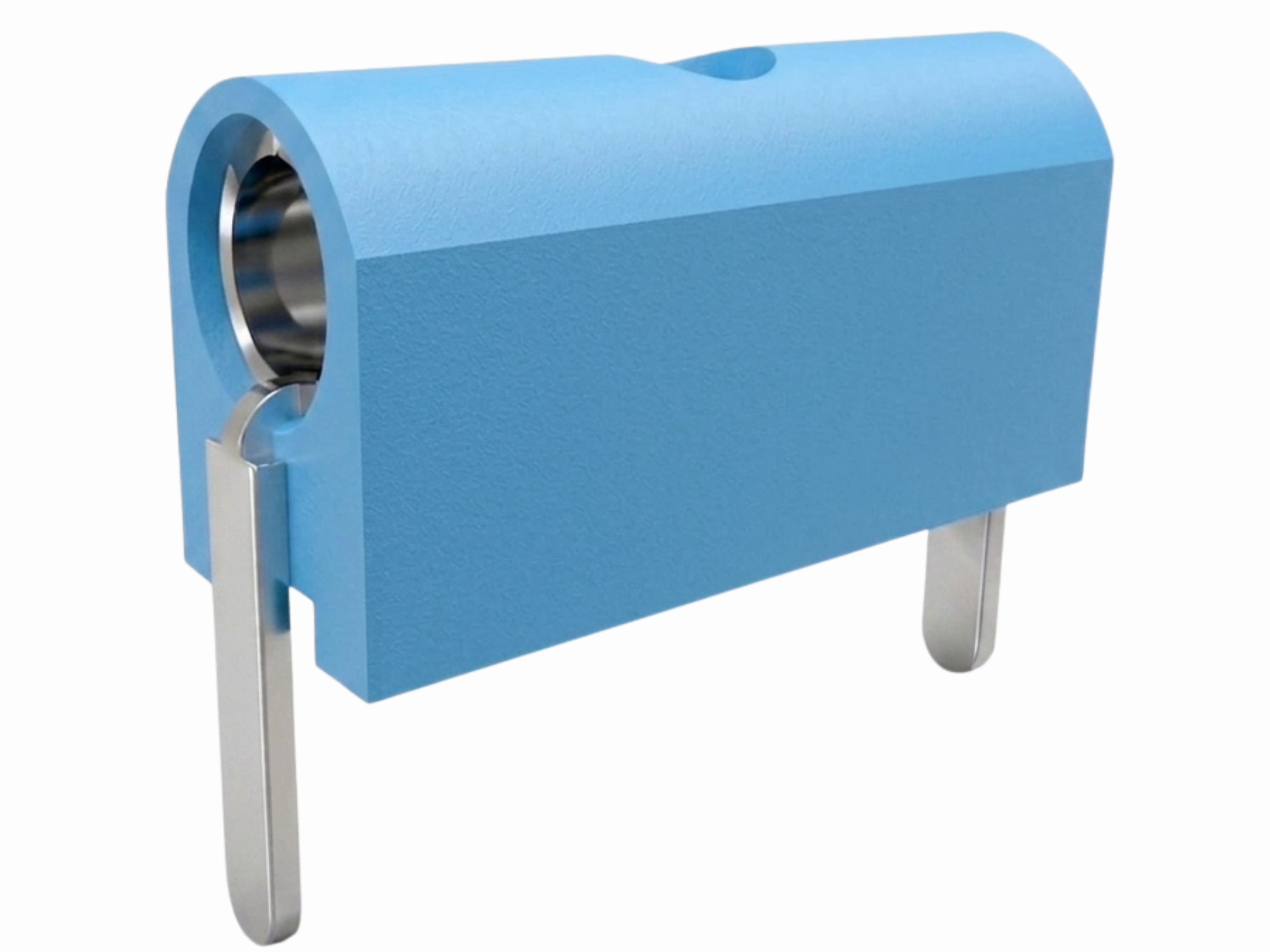

| Blue | P8020-16-31-T | P8020-16-32-T |

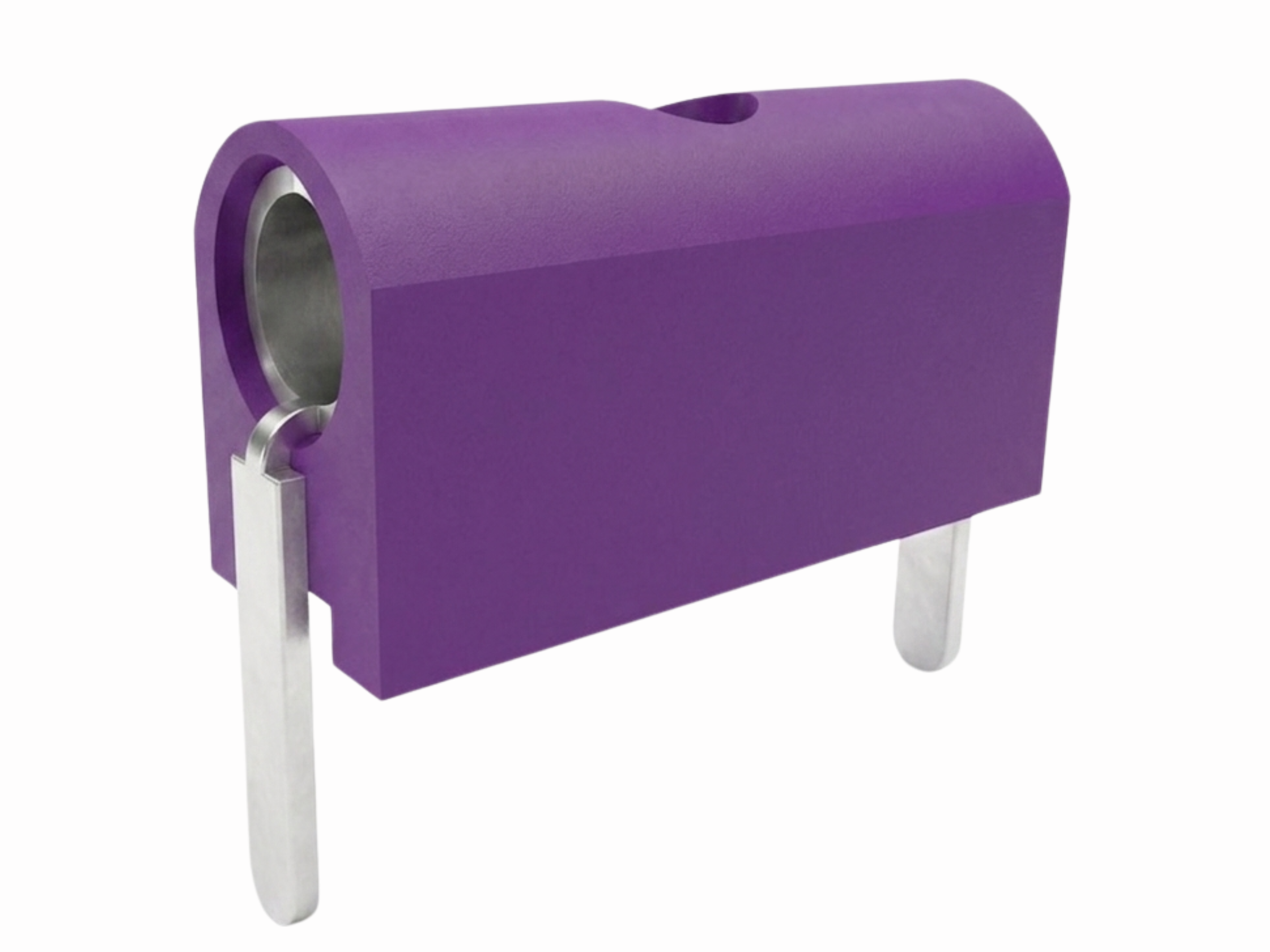

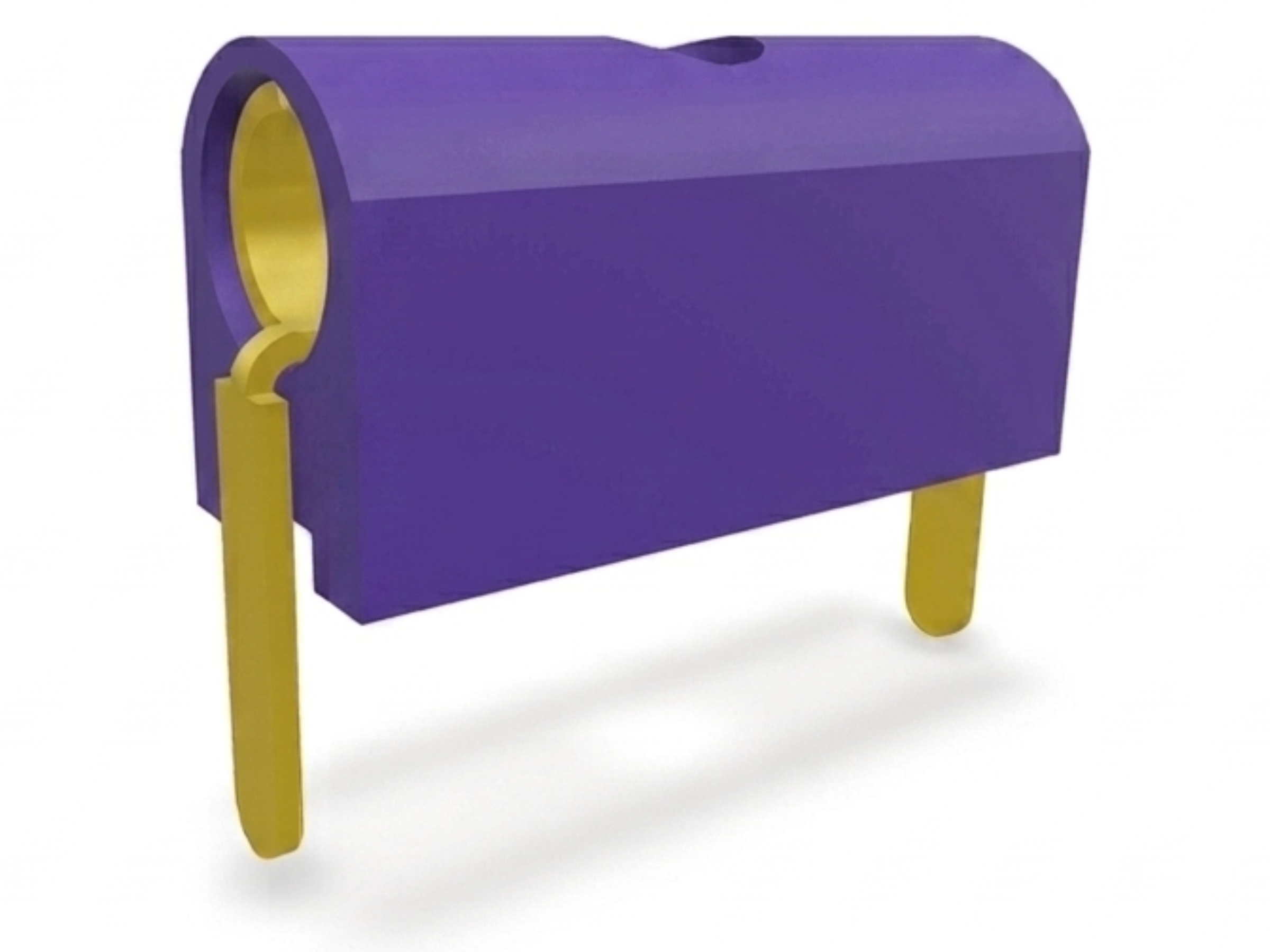

| Violet | P8020-17-31-T | P8020-17-32-T |

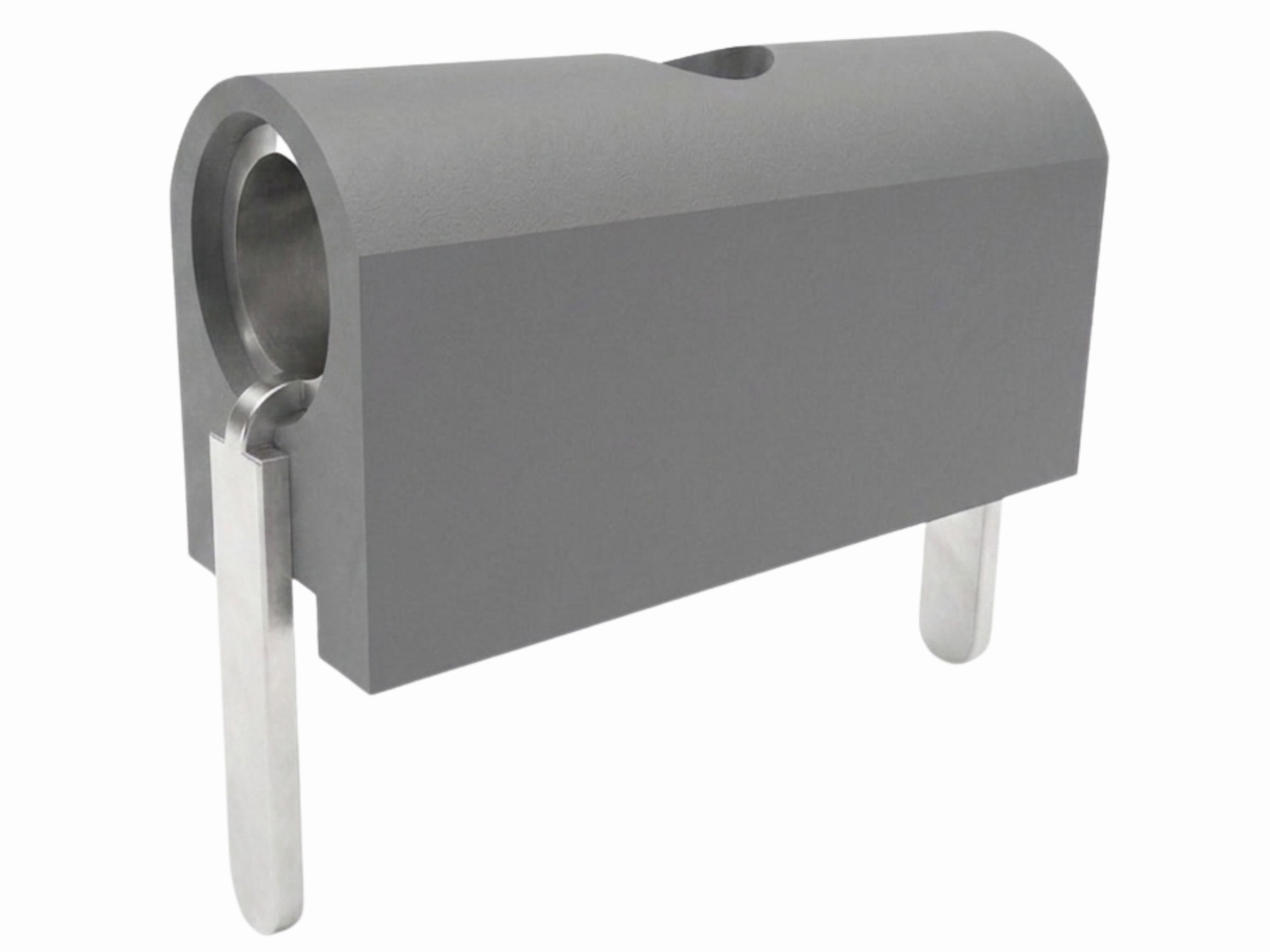

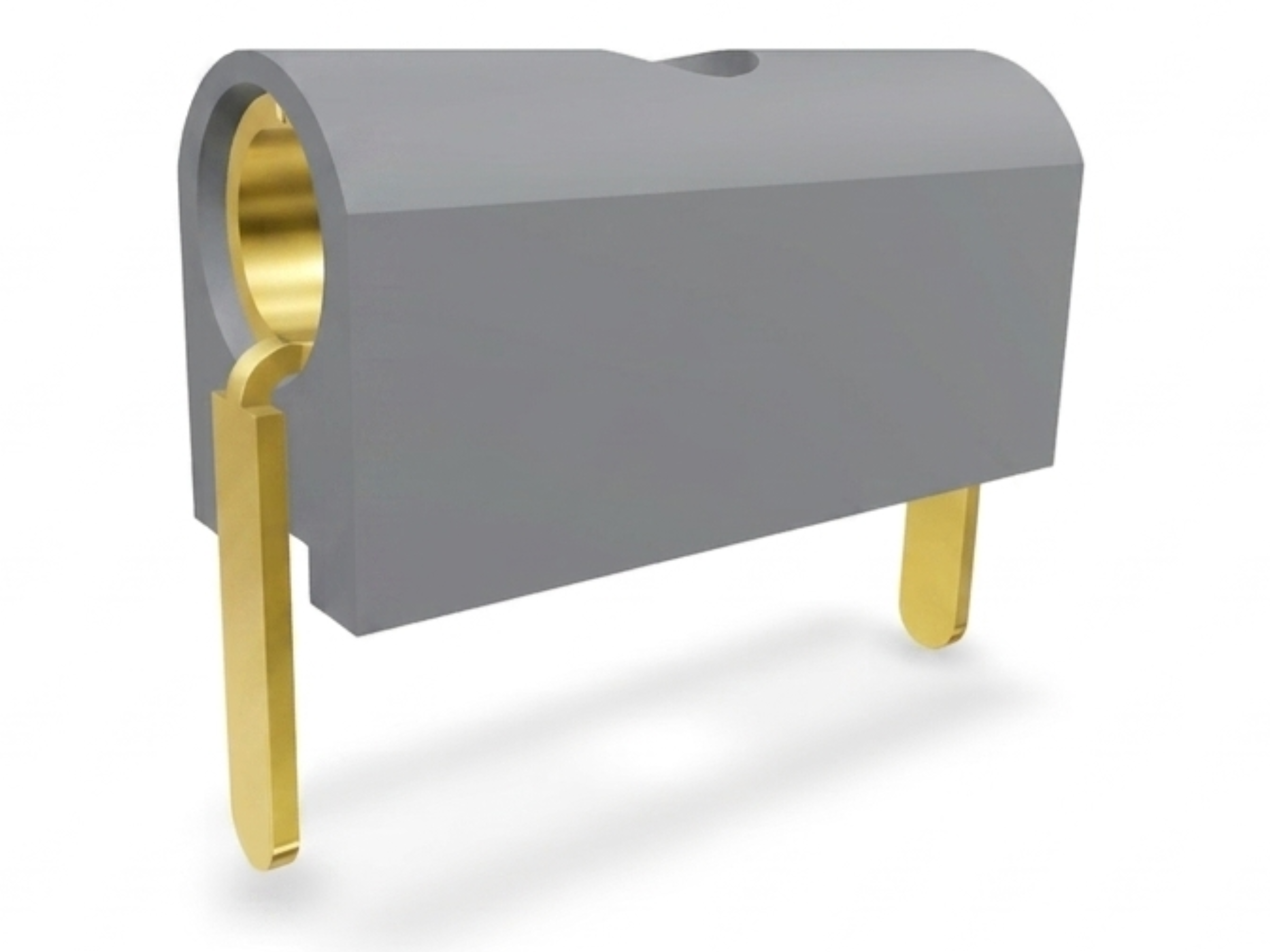

| Grey | P8020-18-31-T | P8020-18-32-T |

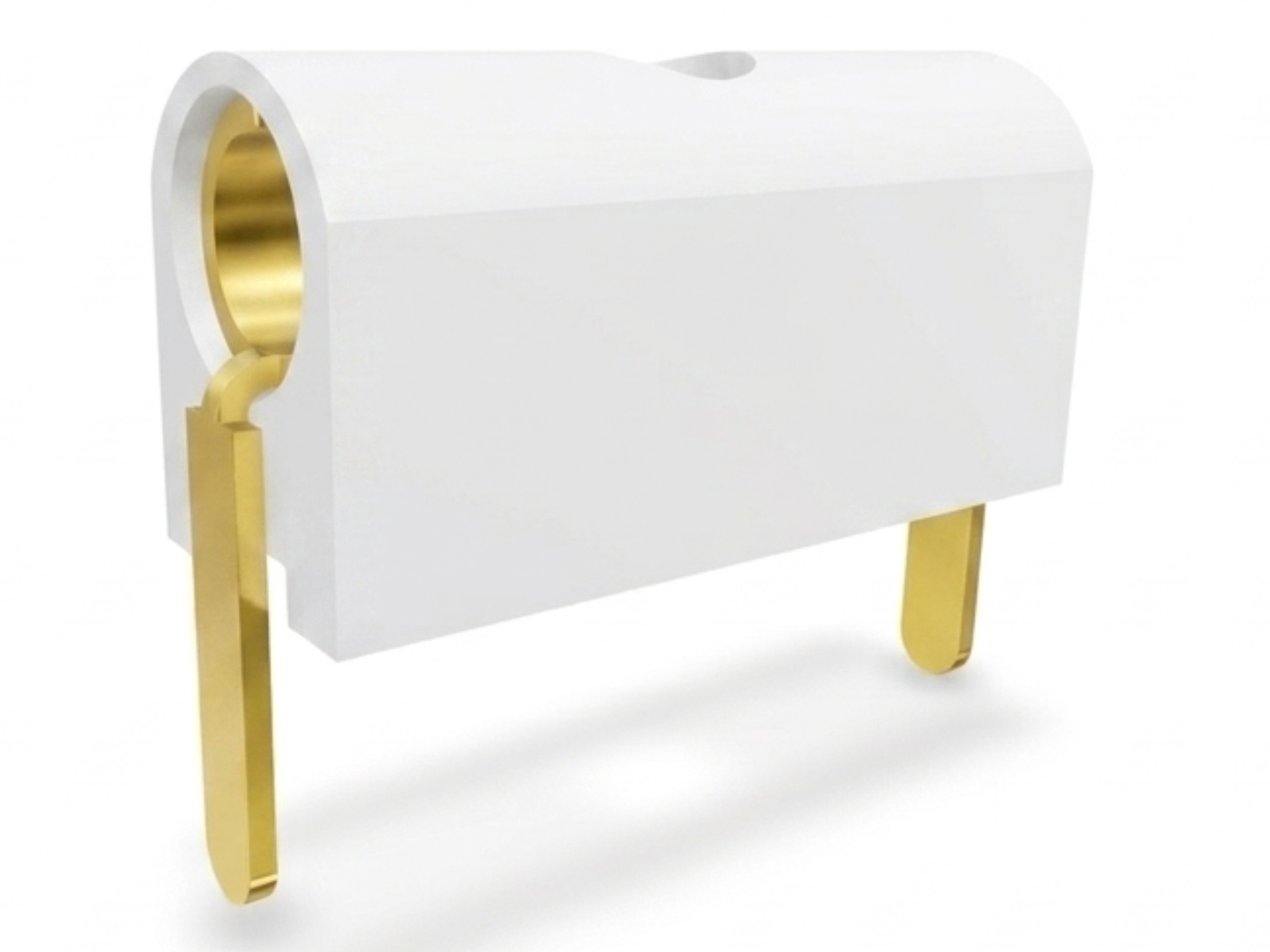

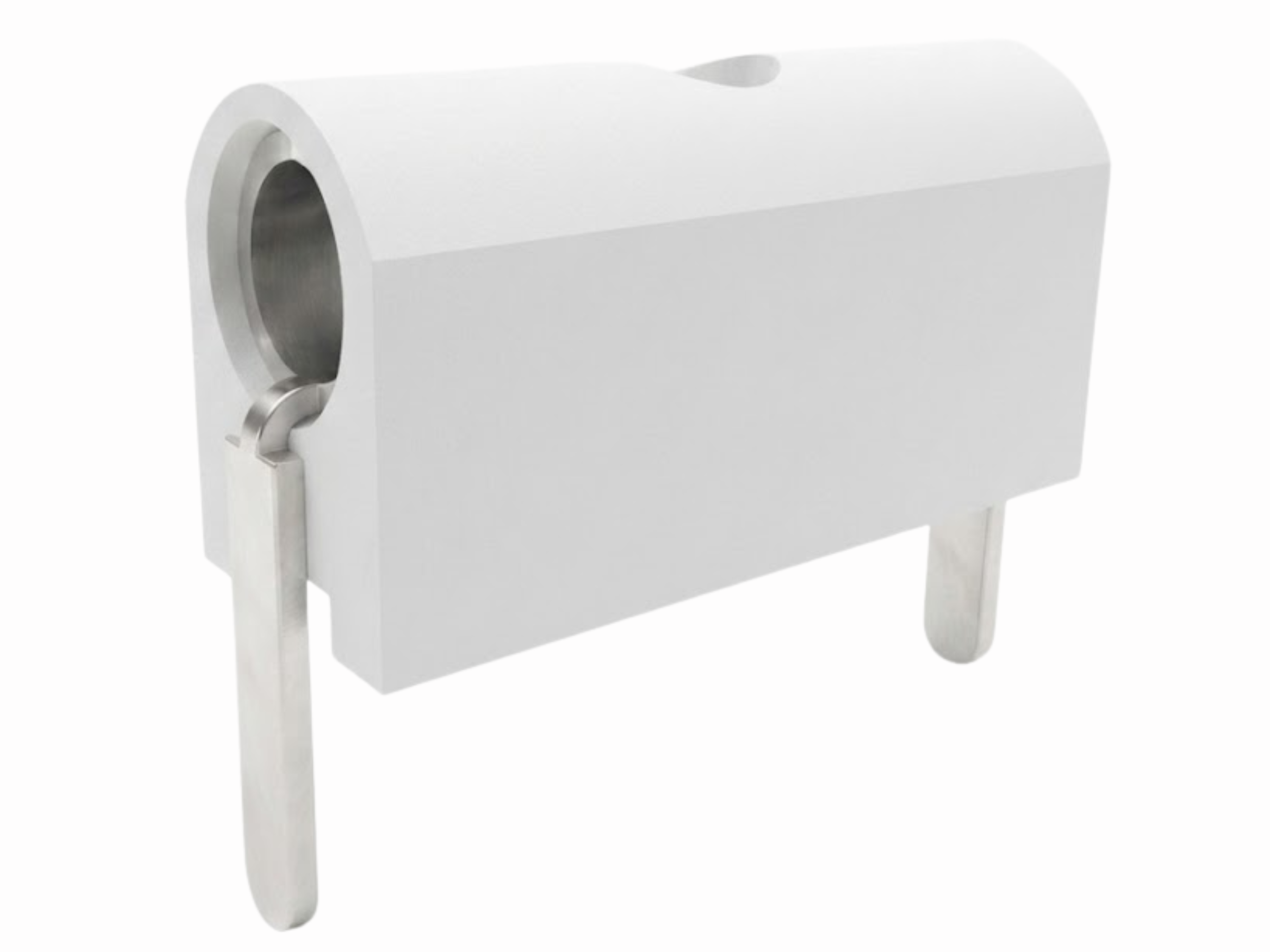

| White | P8020-19-31-T | P8020-19-32-T |
