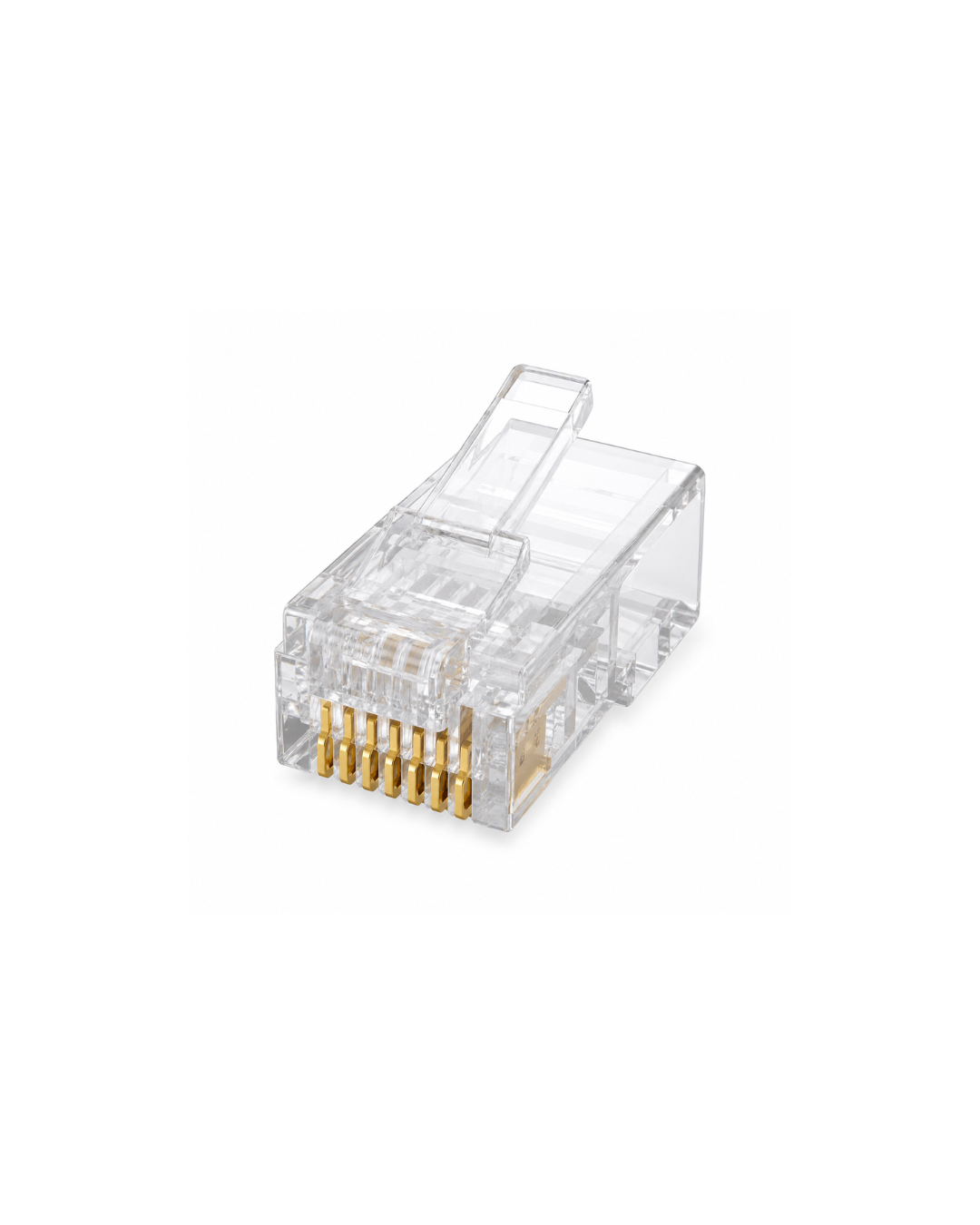

Modular Plug P7020X
Description
P7020X
SPECIFICATIONS
| Voltage Rating | 150V AC max |
|---|---|
| Current Rating | 1A max |
| Contact Resistance | 30mΩ max |
| Insulation Resistance | 500MΩ at 1000V DC |
| Temperature Range | -40°C to +70°C |
| Dielectric Withstanding | 1000V rms for 1minute |
| Durability | 500 Cycles |
MATERIAL & FINISH
| Contact | Copper alloy, Gold plated/Gold on contact area & Tin on Tail/ Tin plated |
|---|---|
| Round Pin | Dia 0.45mm |
| Flat Pin | 0.35mm Thick |
| Insulator | PBT, UL94V-0, Black or Grey |
