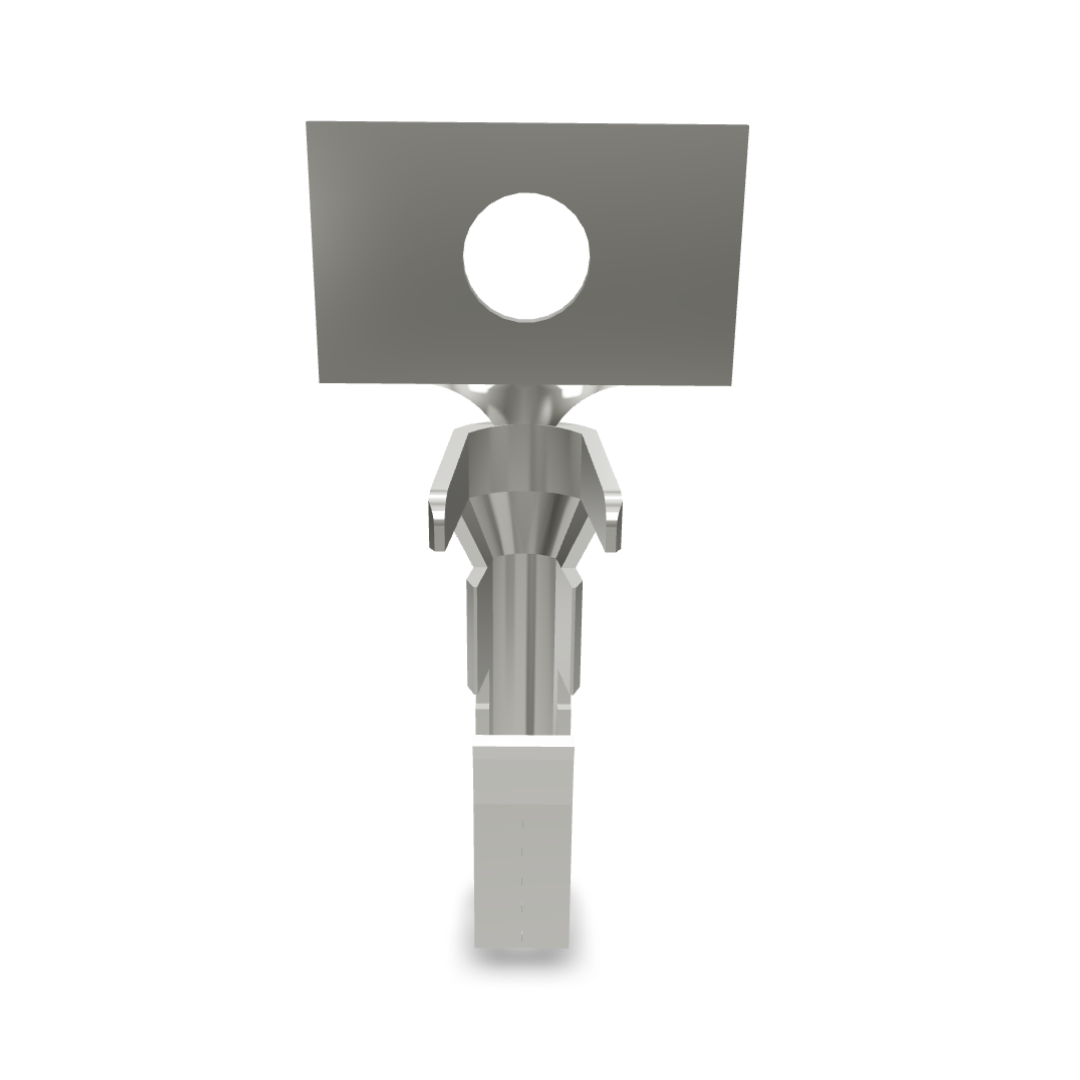

Crimp Terminal P9072T
Description
P9072T
SPECIFICATIONS
| No. of Ways | 2-12 |
|---|---|
| Voltage Rating | 250V AC,DC |
| Current Rating | 3A AC,DC |
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 1000MΩ min |
| Temperature Range | -25°C to +85°C |
| Dielectric Withsatnding | 1500V AC/Minute |
| Crimp Terminal Wire Size | 24-28 AWG |
| Insulation O.D | 1.60mm max |
MATERIAL & FINISH
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Square Pin | Copper Alloy, Gold Plated |
| Insulator | PBT 30% GF , UL 94V-0, Black Color |
