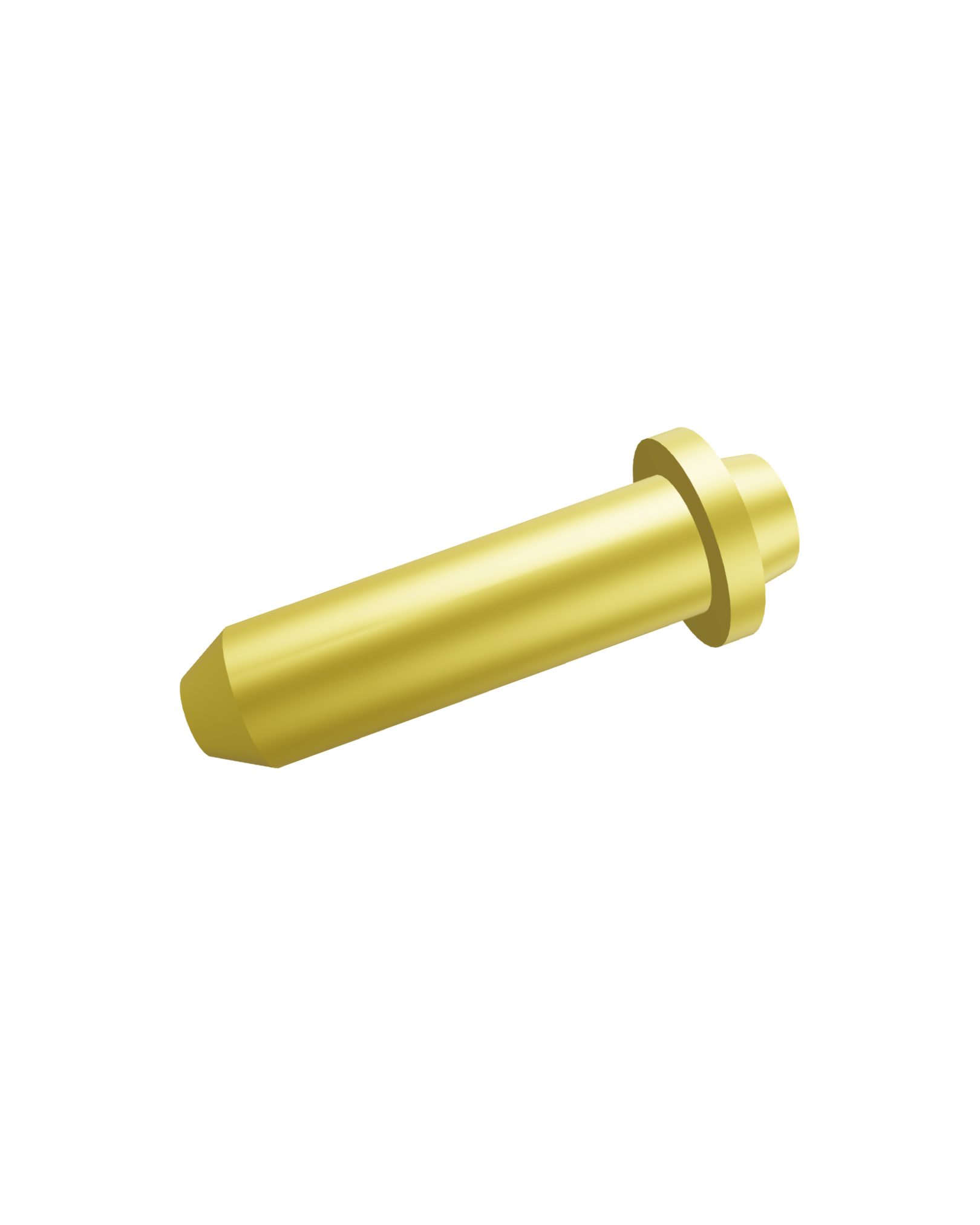

1mm Connector Jack Non-Insulated(P8002)
Description
1mm Connector Jack Non-Insulated
Part no P8002
Specifications
| Current Rating | 3A max |
|---|---|
| Contact Resistance | 5mΩ max |
| Temperature Range | -25°C to +70°C |
| Insertion Force with Ø1.02mm | 0.45kg max |
| Extraction Force with Ø0.98mm | 0.056kg min |
| Mounting Hole Dia in PCB | Ø2.2mm |
| Mating Connectors | P8003,P8005 |
Material & Finish
| Inner Clip | Beryllium Copper, Gold Plated |
|---|---|
| Outer Sleeve | Brass, Silver/Gold/Tin Plated |
ORDERING INFORMATION
| Finish | Part Number | |
|---|---|---|
| For I=5.2mm | For I=7.2mm | |
| Silver Plated | P8002-11-21-0 | P8002-11-31-L |
| Gold Plated | P8002-12-32-0 | P8002-12-32-L |
| Tin Plated | P8002-19-32-0 | P8002-19-32-L |
