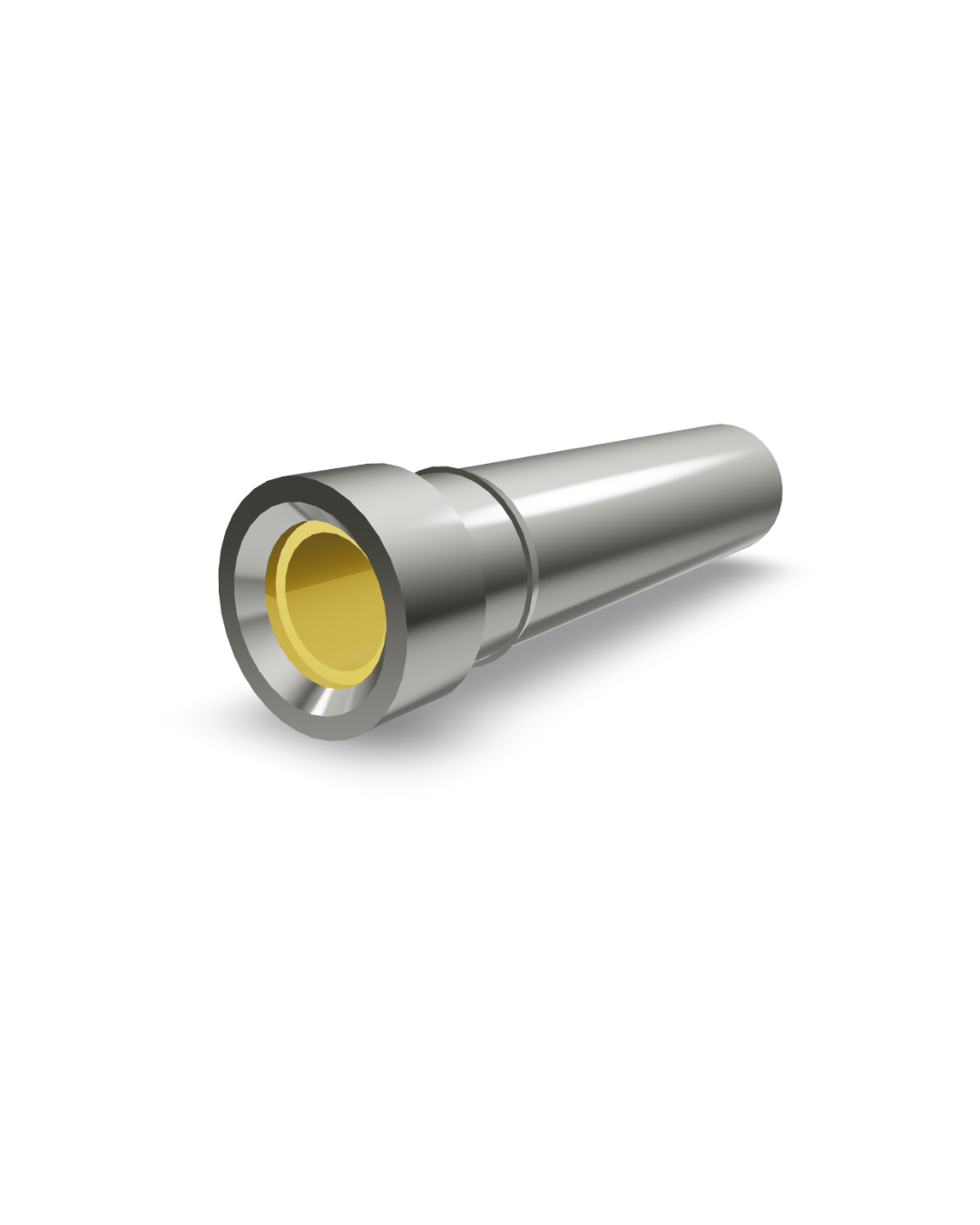

1mm Connector Jack Non-Insulated with Fishhook(P8202)
Description
P8202
SPECIFICATIONS
| current Rating | 3A max |
|---|---|
| Contact Resistance | 5mΩ |
| Temperature Range | -25°C to +70°C |
| Insertion Force | 0.18kg max |
| Extraction Force | 0.05kg min |
| Mounting Hole Dia in PCB | Ø1.55mm |
| Mating Connectors | P8003, P8005 |
ORDERING INFORMATION
| Finish | Part Number |
|---|---|
| Tin Plated | P8202-19-32 |
